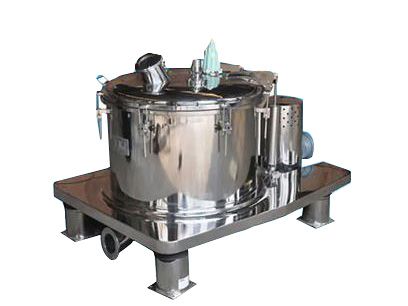

Automatic Bottom Discharge Vertical Peeler Centrifuge
Automatic Bottom Discharge Vertical Peeler Centrifuge, PGZ
Request a Quote

Automatic Bottom Discharge Vertical Peeler Centrifuge

Series PGZ

Weiying PGZ series bottom discharge vertical peeler centrifuge is a fully automatic filtration centrifuge for industries of chemicals, pharmaceuticals, food products, etc. The centrifuge cover is connected to the shell through a flanged connection, and it is provided with feed pipe, wash pipe, sight glass, ventilation port and light hole. The main parts of the vertical peeler centrifuge including rotating basket, shell and cover are made of SUS304 stainless steel. The base part of the vertical peeler centrifuge is jointed to the centrifuge body by welding, and covered with stainless steel layer. The rotating basket, shell and other exposed components are all subject to surface polishing.

Features
  • All fasteners are made of stainless steel;
  • PLC control;
  • Electro-mechanical control of scraper;
  • General motor (or explosion-proof motor) + frequency converter + dynamic braking;
  • Hydraulic system;
Technical Data
Model PGZ800 PGZ1000 PGZ1250 PGZ1320 PGZ1600
Basket diameter (mm) 800 1000 1250 1320 1600
Basket volume (L) 90 160 320 400 S00
Max. load (kg) 135 230 450 550 1000
Max. rotating speed (rpm) 1200 1000 960 960 800
Centrifugal force (G) 645 560 645 680 573
Motor power (kW) 7.5 11 22 22 37
Dimension (L×W×H) (mm) 1600×1200×1900 1950×1500×2050 2400×1800×2280 2400×1800×2320 3100×2280×3100
Weight (kg) 2300 3200 4200 4500 9000
Related Products
  • Automatic Bottom Discharge Vertical Peeler Centrifuge
  • Automatic Top Suspended Peeler Centrifuge
  • Top Discharge Bag Lifting Centrifuge
  • Horizontal Filtering Centrifuge
  • Decanter Centrifuge
  • Fully Enclosed Top Discharge Centrifuge
Get in Touch

If you have questions about our products or want to request a quotation, please feel free to contact us at any time.

Products
  • Industrial Centrifuges
    1. Automatic Bottom Discharge Vertical Peeler Centrifuge
    2. Automatic Top Suspended Peeler Centrifuge
    3. Top Discharge Bag Lifting Centrifuge
    4. Horizontal Filtering Centrifuge
    5. Decanter Centrifuge
    6. Fully Enclosed Top Discharge Centrifuge
  • Filtration Equipment
    1. PE/PA Microporous Filter
    2. Candle Filter
    3. Automatic Plate Type Hermetic Filter
    4. Filter Dryer (3-in-1)
    5. Filtration Machine with Cake Washing
    6. Multi-Bag Filter
    7. Vertical Pressure Leaf Filter
    8. Pipeline Filter
    9. Custom Industrial Filter
  • Drying Equipment
    1. High Speed Centrifugal Spray Dryer
    2. Vibrating Fluidized Bed Dryer
    3. Single-Layer / Multi-Layer Belt Dryer
    4. Rotary Flash Dryer
    5. Air Stream Dryer
    6. Fluid Bed Dryer
    7. High Efficiency Fluid Bed Dryer
    8. Horizontal Vacuum Paddle Dryer
    9. Conical Screw Vacuum Dryer
    10. Double Cone Vacuum Dryer
    11. Continuous Plate Dryer
    12. Paddle Dryer
    13. Rotary Drum Dryer
    14. Contact Drum Dryer
    15. Vacuum Freeze Dryer
    16. Hot Air Circulation Oven
    17. Tunnel Oven
  • Granulation Equipment
    1. Fluidized Bed Granulator
    2. High Speed Mixer / Granulator
    3. Solid Dosage Preparation Granulator
    4. Fluid Bed Granulating Coating Machine
    5. Spray Dryer Granulator
    6. Rotor Fluid-Bed Granulator / Coater
    7. Turbojet Fluid Bed Granulator Coater
    8. Rotary Extrusion Granulator
    9. Twin Screw Extruder
    10. Oscillating Granulator
    11. Dry Granulator
    12. Centrifugal Granulator / Coater
    13. High Efficiency Film Coating Machine
  • Auxiliary Equipment
    1. Multifunctional Extracting Tank
    2. Integrated Extraction System
    3. Alcohol Rectification Column
    4. Stainless Steel Liquid Dosing Tank
    5. Stainless Steel Fermentation Tank
    6. Alcohol Deposition Tank
    7. Stainless Steel Reaction Vessel / Crystallization Tank
    8. CIP Cleaning System
    9. Stainless Steel Single-Layer Storage Tank
    10. Stainless Steel Jacketed Tank
    11. Tubular Heat Exchanger
Explore More Products

Click on the categories to filter our product range

  • PE/PA Microporous Filter

    PE/PA Microporous Filter

    Weiying XKA series PE/PA microporous filter is solid-liquid separation equipment that can be an effective alternative to conventional separation systems such as filter presses, centrifuges and leaf filters.

  • Candle Filter

    Candle Filter

    Weiying XKB series candle filter is primarily used for clarifying liquids with high content of solids. It comprises a group of columnar filter elements enclosed inside a pressure vessel which requires small floor space ...

  • High Speed Centrifugal Spray Dryer

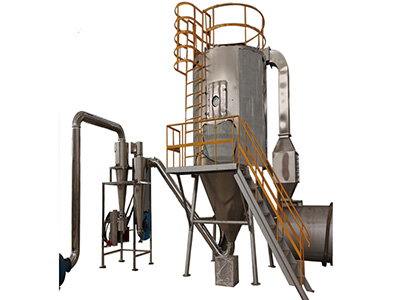

    High Speed Centrifugal Spray Dryer
