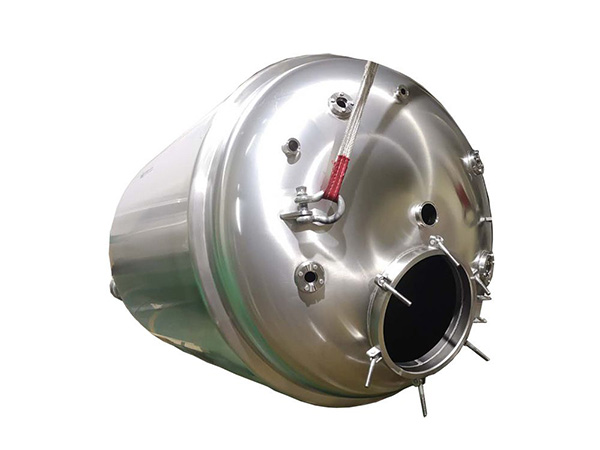

Alcohol Deposition Tank
Alcohol Deposition Tank

Alcohol Deposition Tank

Series JC

Weiying JC series alcohol deposition tank is well suitable for alcohol deposition of traditional Chinese medicine, oral liquid, food, health care products, chemical industry, etc. It is a newly developed special processing equipment (also called solvent exchange), mainly used for the operation of freezing or normal temperature alcohol deposition of traditional Chinese medicine, as well as the operation of water deposition of concentrates after alcohol extraction of traditional Chinese medicine.

Request a Quote
Features
  • The alcohol deposition tank is all made of AISI304 stainless steel , equipped with automatic high-pressure water spraying and rinsing system;
  • Low-temperature cooling water can be passed through the jacket;
  • Mechanical seals and explosion-proof motors are applied in the transmission components, so as to ensure stable, high-efficiency, and safe production processes;
  • The surface of the alcohol deposition tank is perfectly treated with the techniques of polishing or matte finish, which complies with the strict Good Manufacturing Practices (GMP) pharmaceutical standards;
Technical Data
Model JC-300 JC-500 JC-1000 JC-1500 JC-2000 JC-3000 JC-6000
Volume (L) 0.3 0.5 1.0 1.5 2.0 3.0 6.0
Heat exchanger (m²) 1.8 3.0 4.5 6.5 7.5 8.5 13.0
Working temperature (℃) 2-4℃
Jacket pressure (MPa) 0.25
Heat transfer coefficient (W/㎡•K) 200
Stirring power (kW) 0.75 75 1.5 2.2 2.2 3 4
Cooling water consumption (kg/h) 1350 2252 3340 4800 5570 6500 9600
Water pipe size(m/m) DN-20 DN-20 DN-32 DN-40 DN-40 DN-50 DN-5O
Dimension (L×W×H) (mm) 600 800 1000 1200 1300 1400 1600
850 1050 1300 1550 1650 1750 2000
900 900 1200 1200 1300 1400 2700
Weight (kg) 512 1250 1480 1750 1880 2200 4000
