PE/PA Microporous Filter
PE/PA Microporous Filter
Request a Quote

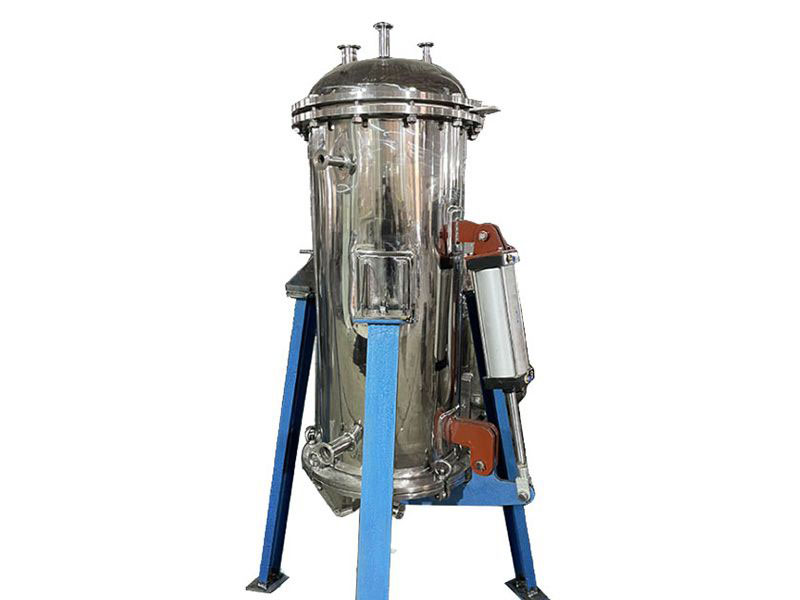

PE/PA Microporous Filter

Series XKA

Weiying XKA series PE/PA microporous filter is solid-liquid separation equipment that can be an effective alternative to conventional separation systems such as filter presses, centrifuges and leaf filters. These PE/PA microporous filters are an essential part for fine chemical, pharmaceutical and food industries requiring batch production with high demands of dry filter cakes.

Features
  • The PE/PA microporous filter features a specially designed structure that helps achieve precision filtration of liquids containing high content of solids, without residue;
  • Able to catch particles with size greater than 0.3μm at one time;
  • PE or PA high molecular microporous tube, titanium/ ceramic filter elements;
  • The filter cake attached on the filter elements is separated and discharged by back blowing. Then, the next filtration cycle begins;
  • The filtration process is carried out in an airtight enclosure, ensuring safe production while preventing any odors from escaping;
  • Pneumatic / hydraulic system is adopted for quick opening and closing, enabling the cleaning and maintenance easier and faster;
  • The corrosion-resistant lining makes the PE/PA microporous filter suitable for handling acidic materials;
  • Additional insulation jacket can be provided to adapt to the actual application needs;
  • Fully automatic control;
Technical Data
Model XKA-1 XKA-2 XKA-3 XKA-5 XKA-10 XKA-20 XKA-30 XKA-40 XKA-60 XKA-100
Filter area (㎡) 1 2 3 5 10 20 30 40 60 100
Handling capacity (T/h)     Depending on specific experimental data
Working pressure (MPa) ≤0.2
Working temperature (°C) ≤110
Filter body diameter (mm) 300 300 400 550 800 900 1200
1000
1400
1200
1800
1200
2000
Filter body height (mm) 1730 2030 2500 2524 3045 3440 3476 3615 4254 5322
Inlet/outlet diameter (mm) DN40/
DN40
DN40/
DN40
DN40/
DN40
DN40/
DN50
DN50/
DN65
DN65/
DN65
DN50/
DN65
DN65/
DN65
DN65/
DN65
DN80/
DN80
Cake discharge opening (mm) 300 300 400 550 800 800 1000
 800
1200
1000
800
1400
1200
1000
800
1400
1200
1000
Filter tube spacing (mm) 85 50 S5 65 50 50 50 60 55 60
Filter volume (m³) 0.07 0.08 0.12 0.321 0.868 1.25 1.821 1.9 4.8 6.3
Max. cake volume (m³) 0.005 0.01 0.015 0.025 0.05 0.1 0.15 0.2 0.3 0.5
Weight (kg) 280 290 365 580 1000 1270 1950 2279 3800 4750
Related Products
  • PE/PA Microporous Filter
  • Candle Filter
  • Automatic Plate Type Hermetic Filter
  • Filter Dryer (3-in-1)
  • Filtration Machine with Cake Washing
  • Multi-Bag Filter
  • Vertical Pressure Leaf Filter
  • Pipeline Filter
  • Custom Industrial Filter
Get in Touch

If you have questions about our products or want to request a quotation, please feel free to contact us at any time.

Products
  • Industrial Centrifuges
    1. Automatic Bottom Discharge Vertical Peeler Centrifuge
    2. Automatic Top Suspended Peeler Centrifuge
    3. Top Discharge Bag Lifting Centrifuge
    4. Horizontal Filtering Centrifuge
    5. Decanter Centrifuge
    6. Fully Enclosed Top Discharge Centrifuge
  • Filtration Equipment
    1. PE/PA Microporous Filter
    2. Candle Filter
    3. Automatic Plate Type Hermetic Filter
    4. Filter Dryer (3-in-1)
    5. Filtration Machine with Cake Washing
    6. Multi-Bag Filter
    7. Vertical Pressure Leaf Filter
    8. Pipeline Filter
    9. Custom Industrial Filter
  • Drying Equipment
    1. High Speed Centrifugal Spray Dryer
    2. Vibrating Fluidized Bed Dryer
    3. Single-Layer / Multi-Layer Belt Dryer
    4. Rotary Flash Dryer
    5. Air Stream Dryer
    6. Fluid Bed Dryer
    7. High Efficiency Fluid Bed Dryer
    8. Horizontal Vacuum Paddle Dryer
    9. Conical Screw Vacuum Dryer
    10. Double Cone Vacuum Dryer
    11. Continuous Plate Dryer
    12. Paddle Dryer
    13. Rotary Drum Dryer
    14. Contact Drum Dryer
    15. Vacuum Freeze Dryer
    16. Hot Air Circulation Oven
    17. Tunnel Oven
  • Granulation Equipment
    1. Fluidized Bed Granulator
    2. High Speed Mixer / Granulator
    3. Solid Dosage Preparation Granulator
    4. Fluid Bed Granulating Coating Machine
    5. Spray Dryer Granulator
    6. Rotor Fluid-Bed Granulator / Coater
    7. Turbojet Fluid Bed Granulator Coater
    8. Rotary Extrusion Granulator
    9. Twin Screw Extruder
    10. Oscillating Granulator
    11. Dry Granulator
    12. Centrifugal Granulator / Coater
    13. High Efficiency Film Coating Machine
  • Auxiliary Equipment
    1. Multifunctional Extracting Tank
    2. Integrated Extraction System
    3. Alcohol Rectification Column
    4. Stainless Steel Liquid Dosing Tank
    5. Stainless Steel Fermentation Tank
    6. Alcohol Deposition Tank
    7. Stainless Steel Reaction Vessel / Crystallization Tank
    8. CIP Cleaning System
    9. Stainless Steel Single-Layer Storage Tank
    10. Stainless Steel Jacketed Tank
    11. Tubular Heat Exchanger
Explore More Products

Click on the categories to filter our product range

  • High Speed Centrifugal Spray Dryer

    High Speed Centrifugal Spray Dryer

    The LPG series high speed centrifugal spray dryer is an industrial drying system that utilizes atomizing system to convert liquid into dry powder.

  • Single-Layer / Multi-Layer Belt Dryer

    Single-Layer / Multi-Layer Belt Dryer

    Weiying DW series belt dryer machine is continuous drying equipment designed for drying various raw materials. Either single layer belt dryer or compact multi-layer belt dryer can be provided to meet your specific needs.

  • High Speed Mixer / Granulator

    High Speed Mixer / Granulator

    Weiying GHL series high speed granulator is a highly efficient equipment mainly adopting horizontal cylinder or conical structures.

  • Stainless Steel Fermentation Tank

    Stainless Steel Fermentation Tank

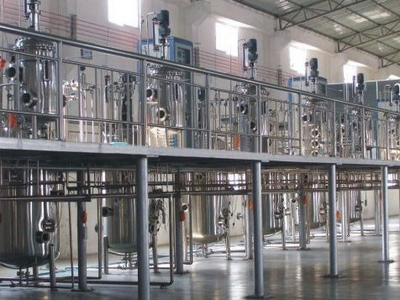

    Weiying stainless steel fermentation tank is a cell culture device that applies standard mechanical agitation system.
