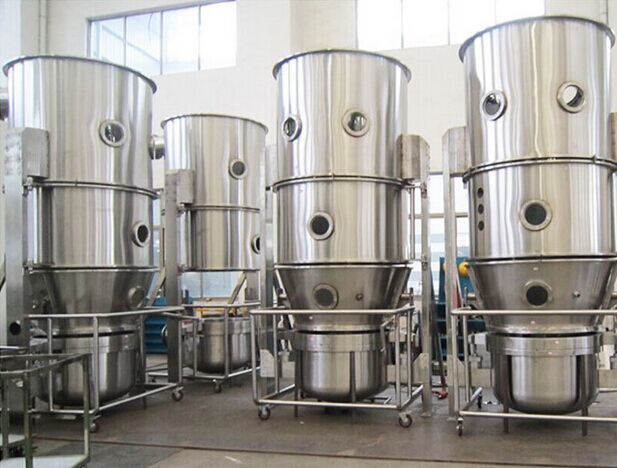

Fluid Bed Dryer
Fluid Bed Dryer

Fluid Bed Dryer

Series FG

Weiying FG series fluid bed dryer is particularly suitable for drying powder or granules, and the operated speed is usually 10 or 20 times than that of common drying ovens.

Request a Quote
Features
  • The mixing and drying process can be completed in the same system. So, it is a cost-effective and energy-efficient fluid bed dryer;
  • It is fully in contact with the high temperature hot air to realize heat transfer process, thus achieving high efficient drying of materials;
  • The fluid bed dryer is operated under fully sealed negative pressure without the dust entering or dead corner, which means that the drying equipment is easy to clean;
  • You can choose steam or electrical heating method, so it depends on your specific needs;
  • This fluid bed dryer adopts anti-static filter medium with high performance and the filter bag is operated in a pneumatic way, which indicates that the equipment meets GMP hygiene standards. As a result, the filter bag has large open space and it can reduce the airflow climbing rate. More importantly, this fluid bed dryer can reduce the dust carrying capacity of the updraft airflow, and the filter bag has less dust stratification, which will improve the handling capacity of the equipment;
Technical Data
Item 30 60 90 120 150 200 300 500 800-1000
Volume of container (L) 100 220 300 420 500 670 1000 1500 Customized in accordance with the request of customers
Productive capacity (kg/batch) 30 60 90 120 150 200 300 500
Steam Pressure (MPa) 0.4-0.6
Consumption (kg/h) 70 140 169 211 241 282 366 465
Compressed air Pressure (MPa) 0.6
Consumption (m3 /min) 0.3 0.6 0.6 0.6 0.6 0.9 0.9 1.1
Power of fan (kW) 5.5 11 15 18.5 22 22 30 45
Inlet air temperature (℃) Normal temperature ~120℃automatism adjust
Yield of materials (%) >99
Content of final moisture (%) Can reach 0.2
Noise (dB) No more than 75 dB separated of fan
Installation size for reference The same as FL model
