Hot Air Circulation Oven
Hot Air Circulation Oven
Request a Quote

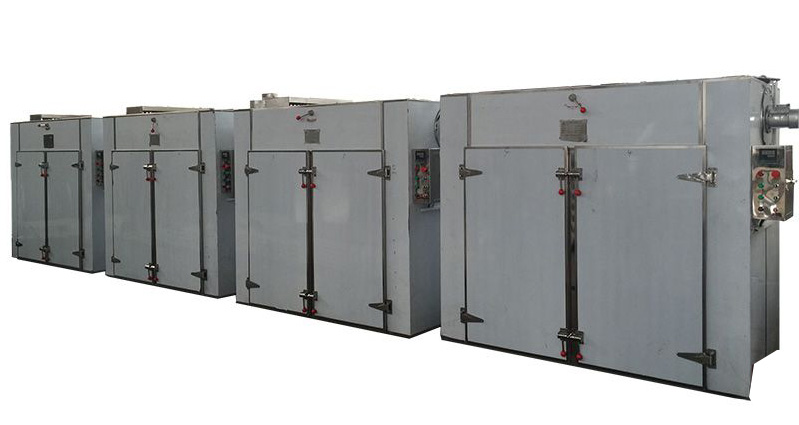

Hot Air Circulation Oven

Series CT/CT-C

Weiying CT/CT-C series hot air circulation oven is mainly used in heating, curing, drying and dehydration of materials and products in various industries of pharmaceutical, chemical, food, agricultural and by-products, aquatic products, light industry, heavy industry, etc. The hot air circulation oven is fitted with fan or blower inside to circulate the hot air (warm air) consistently in every corner of the inner drying chamber.

Features

Now that you are familiar with the hot air circulation oven, let’s take a look at the key features of the machine:

  • Energy-efficient: thanks to the even distribution of hot air, the materials can be dried in a more effective way;
  • Outstanding durability: the dry heat will never corrode or rust the tools;
  • Wide selections: heat sources can be steam, hot water, electricity or infra-red system;
  • Less noise;
  • Self-regulated temperature control;
  • Easy to install and maintain;
  • Wide applications in drying various materials;
Structure of Hot Air Circulation Oven
  • The outer layer of the oven is made of A3 steel and stainless steel;
  • The inner layer is made of aluminum alloy and stainless steel;
  • The equipped drying cart is made of A3 steel and stainless steel;
  • The equipped drying pallet is made of aluminum, stainless steel and galvanized plate;
Technical Data
Model Drying capacity per cycle
(kg)
Power
(kW)
Steam consumption
(kg/h)
Cooling area
(m2)
Fan power
(m3/h)
Electric heating
(kW)
Number of drying pallet Dimension (L×W×H) (mm)

Number of drying cart Weight (kg)
CT-Ⅰ 120 1.1 20 20 2800 15 48 2430×1200×2375 2 1200
CT-Ⅱ 240 2.2 40 40 5200 30 96 2430×2200×2433 4 1500
CT-Ⅲ 360 3 60 80 8000 45 144 3430×2200×2620 6 2000
CT-Ⅳ 480 4 80 100 9800 60 192 4460×2200×2620 8 2300
CT-C-O 25 0.45 5 5 3450 6-9 16 1130×1100×1750 0 800
CT-C-ⅠA 50 0.45 10 10 3450 15 24 1400×1200×2000 1 1000
CT-C-Ⅰ 120 0.45 18 20 3450 15 48 2300×1200×2000 2 1500
CT-C-Ⅱ 240 0.9 36 40 6900 30 96 2300×2200×2000 4 1800
CT-C-ⅡA 240 0.9 36 40 6900 30 96 4460×1200×2290 4 1800
CT-C-Ⅲ 360 1.35 54 80 10350 45 144 3430×2200×2000 6 2200
CT-C-ⅢA 360 1.35 54 80 10350 45 144 2300×3200×2000 6 2200
CT-C-Ⅳ 480 1.8 72 100 13800 60 192 4460×2200×2290 8 2800
Related Products
  • High Speed Centrifugal Spray Dryer
  • Vibrating Fluidized Bed Dryer
  • Single-Layer / Multi-Layer Belt Dryer
  • Rotary Flash Dryer
  • Air Stream Dryer
  • Fluid Bed Dryer
  • High Efficiency Fluid Bed Dryer
  • Horizontal Vacuum Paddle Dryer
  • Conical Screw Vacuum Dryer
  • Double Cone Vacuum Dryer
  • Continuous Plate Dryer
  • Paddle Dryer
  • Rotary Drum Dryer
  • Contact Drum Dryer
  • Vacuum Freeze Dryer
  • Hot Air Circulation Oven
  • Tunnel Oven
Get in Touch

If you have questions about our products or want to request a quotation, please feel free to contact us at any time.

Products
  • Industrial Centrifuges
    1. Automatic Bottom Discharge Vertical Peeler Centrifuge
    2. Automatic Top Suspended Peeler Centrifuge
    3. Top Discharge Bag Lifting Centrifuge
    4. Horizontal Filtering Centrifuge
    5. Decanter Centrifuge
    6. Fully Enclosed Top Discharge Centrifuge
  • Filtration Equipment
    1. PE/PA Microporous Filter
    2. Candle Filter
    3. Automatic Plate Type Hermetic Filter
    4. Filter Dryer (3-in-1)
    5. Filtration Machine with Cake Washing
    6. Multi-Bag Filter
    7. Vertical Pressure Leaf Filter
    8. Pipeline Filter
    9. Custom Industrial Filter
  • Drying Equipment
    1. High Speed Centrifugal Spray Dryer
    2. Vibrating Fluidized Bed Dryer
    3. Single-Layer / Multi-Layer Belt Dryer
    4. Rotary Flash Dryer
    5. Air Stream Dryer
    6. Fluid Bed Dryer
    7. High Efficiency Fluid Bed Dryer
    8. Horizontal Vacuum Paddle Dryer
    9. Conical Screw Vacuum Dryer
    10. Double Cone Vacuum Dryer
    11. Continuous Plate Dryer
    12. Paddle Dryer
    13. Rotary Drum Dryer
    14. Contact Drum Dryer
    15. Vacuum Freeze Dryer
    16. Hot Air Circulation Oven
    17. Tunnel Oven
  • Granulation Equipment
    1. Fluidized Bed Granulator
    2. High Speed Mixer / Granulator
    3. Solid Dosage Preparation Granulator
    4. Fluid Bed Granulating Coating Machine
    5. Spray Dryer Granulator
    6. Rotor Fluid-Bed Granulator / Coater
    7. Turbojet Fluid Bed Granulator Coater
    8. Rotary Extrusion Granulator
    9. Twin Screw Extruder
    10. Oscillating Granulator
    11. Dry Granulator
    12. Centrifugal Granulator / Coater
    13. High Efficiency Film Coating Machine
  • Auxiliary Equipment
    1. Multifunctional Extracting Tank
    2. Integrated Extraction System
    3. Alcohol Rectification Column
    4. Stainless Steel Liquid Dosing Tank
    5. Stainless Steel Fermentation Tank
    6. Alcohol Deposition Tank
    7. Stainless Steel Reaction Vessel / Crystallization Tank
    8. CIP Cleaning System
    9. Stainless Steel Single-Layer Storage Tank
    10. Stainless Steel Jacketed Tank
    11. Tubular Heat Exchanger
Explore More Products

Click on the categories to filter our product range

  • Fluidized Bed Granulator

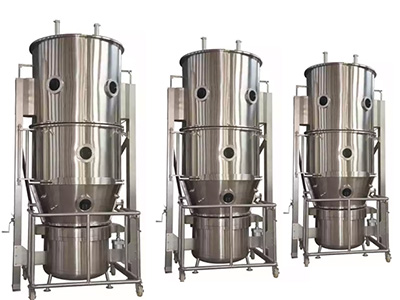

    Fluidized Bed Granulator

    Weiying FL series fluidized bed granulator is specially designed for granulation and coating of powder or pellets in the pharmaceutical, food and agricultural industries.

  • High Speed Mixer / Granulator

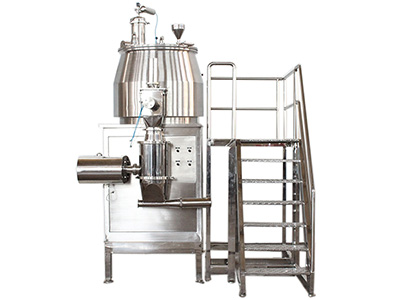

    High Speed Mixer / Granulator

    Weiying GHL series high speed granulator is a highly efficient equipment mainly adopting horizontal cylinder or conical structures.

  • Multifunctional Extracting Tank

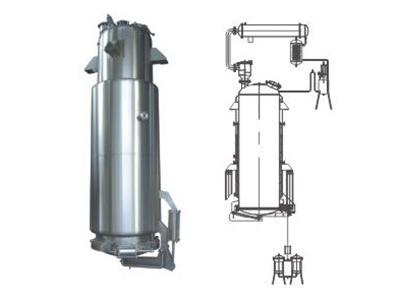

    Multifunctional Extracting Tank

    Stainless steel extracting tanks, or extraction vessels, are used in extraction processes to obtain desired substances from various materials.

  • Integrated Extraction System

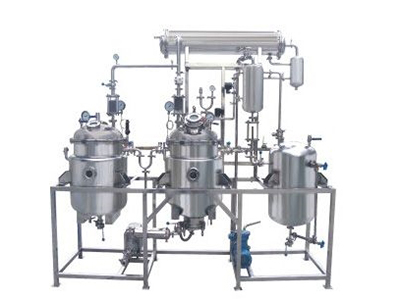

    Integrated Extraction System
