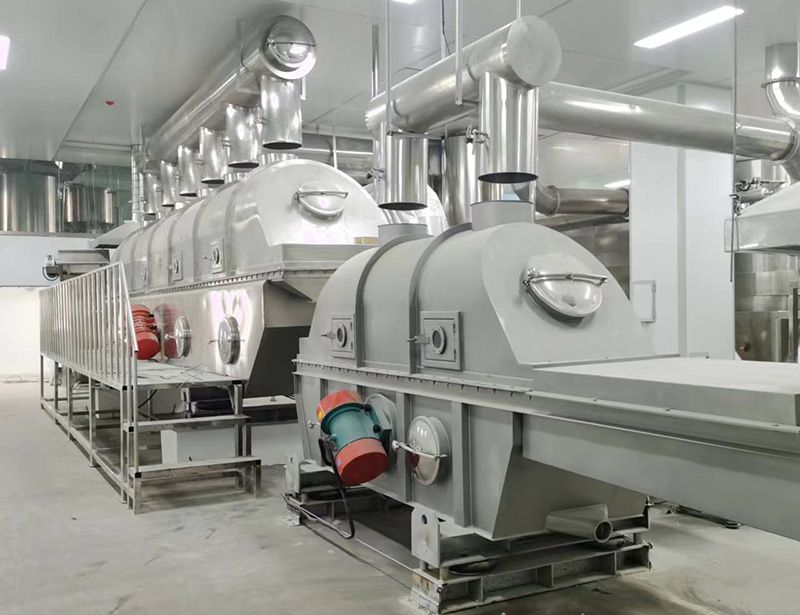

Vibrating Fluidized Bed Dryer
Vibrating Fluidized Bed Dryer

Vibrating Fluidized Bed Dryer

Series ZLG

Weiying ZLG series vibrating fluidized bed dryer is an efficient drying system designed for drying, cooling and heating of a variety of powdery and granular materials. By combining the advantages of vibratory and fluid bed technology, the vibrating fluidized bed dryer is featured by high transfer efficiency which makes it versatile for handling bulk materials in chemicals, pharmaceutical, food, plastics, slag, oil, sugar and light industries.

Request a Quote
Features
  • Vibration motor is adopted to produce exciting force, ensuring stable operation, low noise level, long service life as well as easy maintenance;
  • Designed with heat transfer efficiency in mind, this vibrating fluidized bed dryer can save more than 30% energy when compared to conventional drying machines;
  • The uniform temperature distributions ensures stable fluidization process without dead corners;
  • Stepless adjustment of material thickness, moving speed and vibration amplitude is available to adapt to actual application needs;
  • The vibrating fluidized bed dryer is well suited for drying fragile materials since it cause less damage of material surface;
  • Fully enclosed structure effectively protects the materials from external contamination;
  • More advanced and accurate operation and control system, less downtime;
  • The vibrating fluidized bed dryer can operate continuously and achieve high volume production of high-moisture materials, for example, polyacrylamide.
Technical Data
Model Fluidized bed area (㎡) Inlet air temperature (℃) Outlet air temperature (℃) Water evaporation capacity (kg/h) Vibration motor
Model Power
ZLG3x0.30 0.9 70-140 40-70 20-35 ZDS31-6 0.5x2
2LG4.5x0.30 1.35 76-140 40-70 35-50 ZDS31-6 0.75x2
ZLG4.5x0.45 2.025 70-140 40-70 50-70 ZDS32-6 1.1x2
ZLG4,5x0,60 2.7 70-140 40-70 70-90 ZDS32-6 1.1x2
ZLG6x0.45 2.7 70-140 40-70 80-100 ZDS41-6 1.5x2
ZLG6x0.60 3.6 70-140 40-70 100-130 ZDS41-6 1.5x2
ZLG6x0.75 4.5 70-140 40-70 120-146 ZDS42-6 2.2x2
ZLG6x0.9 5,4 70-140 40-70 140-170 ZDS42-6 2.2x2
LG7.5x6.0 4.5 70-140 40-70 130-150 ZDS42-6 2.2x2
LG75x0,75 5.625 70-140 40-70 150-180 ZDS51-6 3.0x2
LG7.5x0.9 6.75 70-140 40-70 160-210 ZDS51-6 3.0x2
ZLG7.5x1.2 9.0 70-140 40-70 200-260 ZDS51-6 3.7x2
