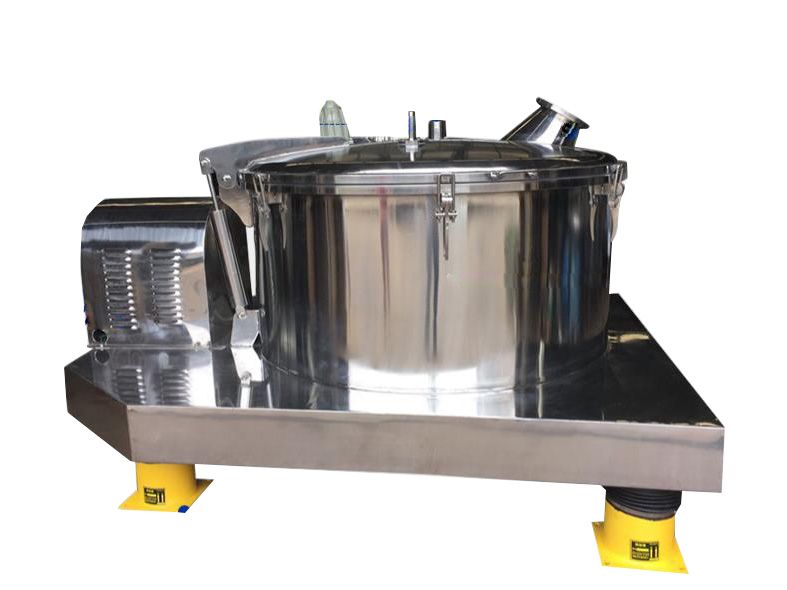

Top Discharge Bag Lifting Centrifuge
Top Discharge Bag Lifting Centrifuge

Top Discharge Bag Lifting Centrifuge

Series PSD

Weiying PSD series top discharge bag lifting centrifuge is a solid-liquid separation system used in the industries of pharmaceutical, chemical, fine chemical and food products.

Request a Quote
Features
  • The bag lifting centrifuge employs variable frequency drive to guarantee stable start-up, and the centrifugal force is adjustable;
  • Filter bag discharge method enables reduced labor intensity and improved working efficiency;
  • Rational structure design efficiently eliminates the dead corners for solid accumulation, the surface of structural parts is polished and smooth to facilitate the residual heel removal;
  • The external structural parts, fasteners and rotating basket are all made of stainless steel;
  • The stainless steel shell has a hinged cover, making it possible to access the space between the shell and basket for easy cleaning and maintenance;
  • CIP (cleaning-in-place) system is equipped with spray nozzles for thorough cleaning of the bag lifting centrifuge from inner wall to outer shell, as well as surface of rotating basket and other difficult-to-access parts, ensuring that the top discharge bag lifting centrifuge comply with GMP requirements;
  • Reasonable design and simple structure, providing easy operation and maintenance;
  • Grains are less prone to break, ensuring the integrity of products;
  • A nitrogen protection system is provided to ensure that the inner cavity of the bag lifting centrifuge is isolated from the outside atmosphere;
  • Fully closed structure with silicone rubber or fluorine rubber sealing parts, and safety measures are available for airtight and explosion-proof therefore enabling the centrifuge suitable for materials containing toxic, flammable or hazardous substances;
Structure
  • The centrifuge shell is provided with hinged cover, feed pipe, wash pipe, sight glass, ventilation port and light hole;
  • The rotating basket, shell and cover of the top discharge bag lifting centrifuge are all made of SUS304 stainless steel;
  • The centrifuge base is assembled using robust castings, and the surface of which is spray coated;
  • All fasteners are made of stainless steel;
  • General motor (or explosion-proof motor) + frequency converter + dynamic braking;
  • 1 set of lifting sling;
Technical Data
Model PSD800 PSD1000 PSD1200 PSD1250 PS01500 PSD1600
Basket diameter (mm) 800 1000 1200 12S0 1500 1600
Basket volume (L) 100 175 350 400 600 740
Max. load (kg) 135 250 470 530 800 900
Max. rotating speed (rpm) 1200/1500 1000/1200 960/1050 960/1050 650/850 800
Centrifugal force (G) 645/1006 560/806 620/740 645/770 355/606 650
Motor power (kW) 5.5/7.5 11/15 15/16.5 18.5/22 22/30 37
Dimension (L×W×H) (mm) 1680x1300×980 2000x1560x1280 2260x1750x1300 2260x1765×1350 2600×2135×1620 2800×2280×1670
1600×1200×1300 1950×1500×1330 2400×1700×1500 2400×1700×1500 2700×2100×1600
Model 1500 2000 3000 3000 4800 8500
