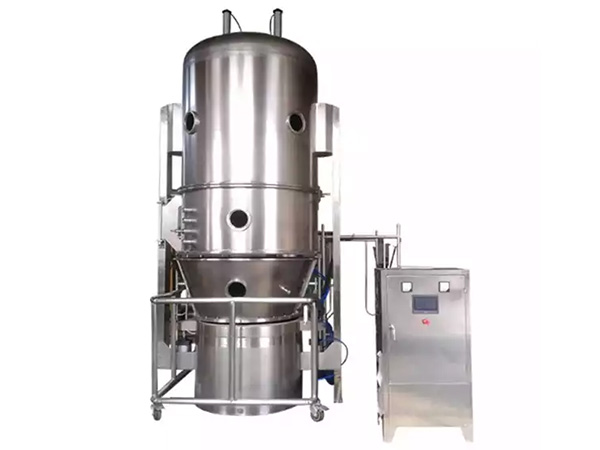

Spray Dryer Granulator
Spray Dryer Granulator

Spray Dryer Granulator

Series PGL-B

Weiying PGL-B series spray dryer granulator is particularly applicable for the manufacturing of traditional Chinese medicine (TCM), capsule, tablets or coating of granules.

Request a Quote
Features
  • The structure design of the spray drying chamber, trap chamber, fluidized bed and the secondary distribution system have been appropriately optimized. Therefore, the efficiency of spray drying and the intensity of fluidization have greatly improved, which make it more convenient, reliable and accessible;
  • This PGL-B series spray dryer granulator is more organized than FLP series fluid bed granulating coating machine, which is a better choice for improving drying intensity in materials processing;
  • The spray dryer granulator is manufactured and designed according to GMP standards, so it’s absolutely a good fit for you;
Technical Data
Item Specification 3 5 10 20 30 40 80 120 150
Container volume L 26 50 100 220 300 420 670 1000 1500
Liquid speed kg/h 2--4 4--6 6--15 15--25 20--40 30--60 60--100 20--160 100--200
Specific gravity of liquid kg/l ≤1.3
Compressed air Pressure MPa 0.4--0.6
Consumption kg/h 25 50 120 160 240 280 300 380 465
Steam Pressure MPa 0.6
Consumption m³/min 0.4 0.6 0.9 0.9 1.1 1.1 1.3 1.6 1.8
Auxiliary blower fan power kW 0.55 0.75 0.75 1.1 1.5 1.5 1.5 2.2 2.2
Draft fan power kW 3 4 7.5 11 18.5 18.5 22 30 37
Installation size for reference H1 (mm) 1900 2360 2680 3150 3630 3630 4120 5050 5400
H2 (mm) 190 260 340 490 540 590 690 890 990
H3 (mm) 1680 2140 2460 2930 3410 3410 3900 4830 5180
Φ1 (mm) 400 550 700 1000 1100 1200 1400 1800 2000
Φ2 (mm) 150 180 180 250 280 280 315 355 355
B (mm) 860 1010 1160 1460 1560 1660 1860 2260 2460
L (mm) 1050 1050 1250 1400 1450 1500 1600 1800 2000

Note: All parameters are for reference only, depending on material condition.
