Spiral Plate Heat Exchanger/Tubular Heat Exchanger
Spiral Plate Heat Exchanger/Tubular Heat Exchanger
Spiral Plate Heat Exchanger/Tubular Heat Exchanger Spiral Plate Heat Exchanger/Tubular Heat Exchanger Spiral Plate Heat Exchanger/Tubular Heat Exchanger Spiral Plate Heat Exchanger/Tubular Heat Exchanger

Spiral Plate Heat Exchanger/Tubular Heat Exchanger

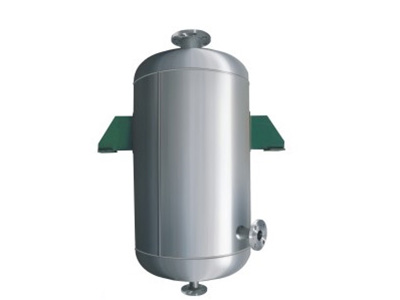

Spiral Plate Heat Exchanger

Weiying spiral plate heat exchanger can be extensively used in the pharmaceutical industry for liquid or gas heating, cooling and evaporation, due to its advantages of high thermal efficiency, compact structure and easy installation. It offers heat exchange area of 5-120m², maximum operating pressure of 1.6MPa and operating temperature ranging from -50 to 250℃.

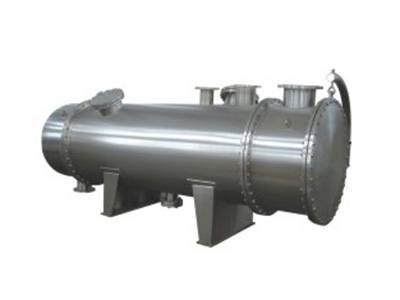

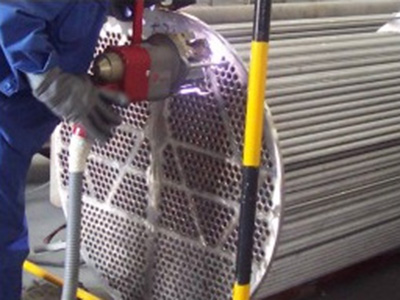

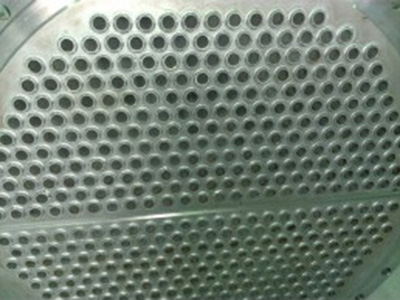

Tubular Heat Exchanger

Weiying tubular heat exchanger is a sealed heat exchanger with different specifications of tubes. It uses high quality SUS304 stainless steel as the body material. In addition, with compact structure and versatile functions, this tubular heat exchanger is easy for cleaning and washing, thus conforming to GMP requirements. Nowadays, it has gained great popularity in pharmaceutical and chemical industry.

Request a Quote
Features of Stainless Steel Heat Exchanger
  • Simple and compact structure, attractive appearance, good resistant to corrosion, and convenient for cleaning;
  • Completely complying with Good Manufacturing Practices (GMP) standards;
Technical Data of Tubular Heat Exchanger
Heat exchange area (m²) 0.5 1 1.5 2 3 4 5 6 8 10
Inlet and outlet diameter (mm) 20 25 32 32 32 40 40 40 50 50
Shell diameter (mm) 159 159 219 219 273 273 273 300 300 300
Length of tube (mm) 800 1500 1500 1500 1500 1500 2000 2000 2000 2000
Shell pressure (MPa) 0.3
Tube pressure (MPa) 0.3
