Integrated Extraction System
Integrated Extraction System

Integrated Extraction System

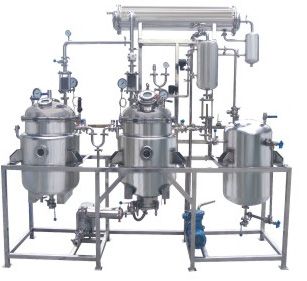

Weiying integrated extraction system (IES) is applicable for the extraction and concentration of active ingredients of medicinal herbs and multiple plants. It can be used for the recovery of solvent and collection of aromatic oil. The integrated extraction system is an ideal laboratory extraction system for determining technical parameters of new processes, researching new varieties, and small batch production of precious herbs in hospitals, pharmaceutical factories, scientific research units, etc.

Request a Quote
Technical Data
Model TQ-20 TQ-50 TQ-100 TQ-200 TQ-300 TQ-500
Extracting tank capacity (L) 20 50 100 200 300 500
Concentration tank capacity (L) 20 50 100 200 300 500
Jacket working pressure (MPa) < 0.1
Tank working pressure (MPa) Atmospheric pressure or negative pressure
Extracting temperature (°C) 40-100
Heating media Steam, thermal oil and water
Vacuum pump SK-0.4 SK-0.8 SK-0.8 SK-1.5 SK-1.5 SK-1.5
Electrical heating power (kW) 12 18 24 24 36 36
Temperature display range (°C) 0-200°C
Overall dimensions (m) 2x0.75x1.7 2.5x0.75x2.4 2.8x0.8x2.5 3x0.9x3 4.3x1.4x3.5 4.3x1.8x4
