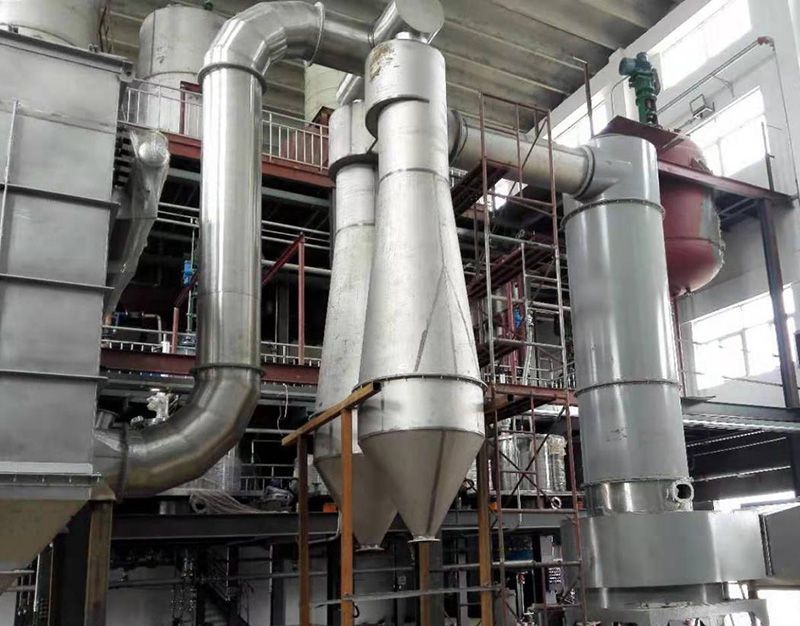

Rotary Flash Dryer
Rotary Flash Dryer

Rotary Flash Dryer

Series XSG

As a new type of highly efficient drying equipment in our company, Weiying XSG series rotary flash dryer has a wide range of applications due to its large production capacity. Through the utilization of environmental-friendly and cutting-edge technologies, the rotary flash dryer is designed for continuous drying, grinding and sieving of materials at one time, with results of high efficiency, energy-saving and environmental protection.

The rotary flash dryer adopts bearing induction cooling method (water cooling), with the oil pump equipped to cool the bearings. The sealing device performs superbly and the motor runs stably with low noise level, thus resulting in a 10 times longer service life than other industrial dryers.

Request a Quote
Features
  • Multiple feeding devices are available for your selection and continuous and steady feeding can be achieved during the processing process.
  • Specialized cooling equipment is installed at the bottom of the rotary flash dryer, so as to avoid the deterioration of materials in the high temperature area at the bottom.
  • The air sealing device and bearing cooling system can effectively provide longer service life of the transmission part and other. Because of lower mechanical vibrations, less noise and longer operational life, it is absolutely a good choice.
  • Drying chamber with classifier is offered, which can significantly reduce the resistance of this equipment.
  • Compared with other drying methods, the rotary flash dryer is suitable for maintaining an economical drying process.
  • A higher circumferential velocity within the drying chamber and shorter residence time of materials can effectively prevent materials from sticking to the inner wall and deterioration of heat sensitive materials.
Technical Data
Model Diameter of drying pipe (mm) Overall dimensions (mm) Total power (kW) Air flow (m³/h) Water evaporation capacity (kg/h) Occupied area (mm)
XSG-2 200 300×3000 0.75-2.2 300-800 44854 3500×2500
XS6-4 400 500×4000 3-4 1250-2500 25-70 4000×3000
XSG-6 600 700×5500 5.5-7.5 6000-7500 40-150 4250×3250
XSG-8 800 900×6000 7.5 3000-8000 60-200 4500×3500
XSG-10 1000 1100×6500 7.5-11 10000-12000 100-300 4750×3750
XSG-12 1200 1300×7500 15-18.5 15500-18000 150-500 5000×4000
XSG-14 1400 1500×8000 15-18.5 20060-27000 200-600 5250×4250
XSG-16 1600 1760×8500 22 18700-30000 400-800 5500×4500
XSG-18 1800 2000×9000 37─45 32000-38000 1150-1350 8000×7000
XSG-20 2000 2200×9500 55─75 40000-48000 1400-1680 1000×9000
