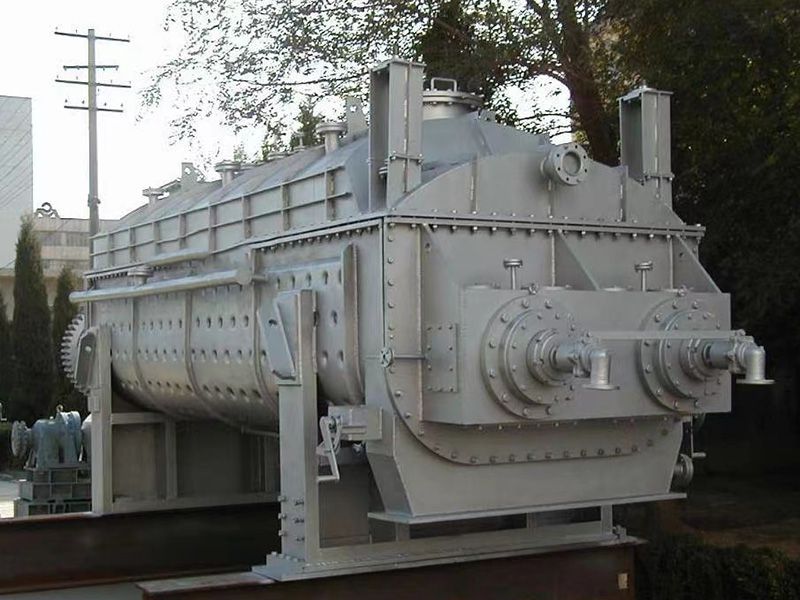

Paddle Dryer
Paddle Dryer

Paddle Dryer

Series KJG

As a low-speed stirring dryer, Weiying KJG series paddler dryer has a wide range of applications, including but not limited to plastics, resin products, inorganic pharmaceuticals, fertilizers, feed, food, chemical fiber, dyestuff, starch, sewer sludge and other products. Accordingly, the paddler dryer can achieve an efficient drying mode, so that the materials can be fully contacted with the heat carrier. And the configuration of the machine is generally horizontal, double-axis or four-axis.

Request a Quote
Features
  • This paddler dryer is an energy-saving drying equipment featured by compact design, small footprint and good thermal efficiency reaching 80%-90%;
  • The equipment has low rotating speed, which is ideal for the manufacturing granules, pellets and tablets while ensuring the integrity of processed materials;
  • The paddler dryer is suitable for a wide range of materials such as vinyl chloride, resin, nylon, polyethylene, polypropylene, starch, sodium chloride, sugar, iron oxide, feldspar, caustic soda powder and other kinds of powder and paste materials, and has adjustable technical parameters;
  • High cost-effectiveness;
  • The paddler drying equipment is versatile for drying, cooling, gas recovery, reaction heating (pre-pasteurization) and other procedures;
Technical Data
Model JYG-3 JYG-9 JYG-13 JYG-18 JYG-29 JYG-41 JYG-52 JYG-68 JYG-81 JYG-95 JYG-110
Heat transferring area (m3) 3 9 13 18 29 41 52 68 81 95 110
Effective volume (m3) 0.06 0.32 0.59 1.09 1.85 2.8 3.96 5.21 6.43 8.07 9.46
Range of rotating speed (rpm) 15-30 10-25 10-25 10-20 10-20 10-20 10-20 10-20 5-15 5-15 5-10
Power (kW) 2.2 4 5.5 7.5 11 15 30 45 55 75 95
Width of vessel A (mm) 306 584 762 940 1118 1296 1474 1652 1828 2032 2210
Total width B (mm) 736 841 1066 1320 1474 1676 1854 2134 2268 2438 2668
Length of vessel C (mm) 1956 2820 3048 3328 4114 4724 5258 5842 6020 6124 6122
Total length D (mm ) 2972 4876 5486 5918 6808 7570 8306 9296 9678 9704 9880
Distance of material inlet & outlet (mm) 1752 2540 2768 3048 3810 4420 4954 5384 5562 5664 5664
Height of center F (mm) 380 380 534 610 762 915 1066 1220 1220 1220 1220
Total height G (mm) 762 838 1092 1270 1524 1778 2032 2362 2464 2566 2668
Steam inlet N (inch) 3/4 3/4 1 1 1 1 11/2 11/2 11/2 11/2 2
Water outlet O (inch) 3/4 3/4 1 1 1 1 11/2 11/2 11/2 11/2 2
