3-in-1 Filter Dryer
Filter Dryer (3-in-1)
Request a Quote

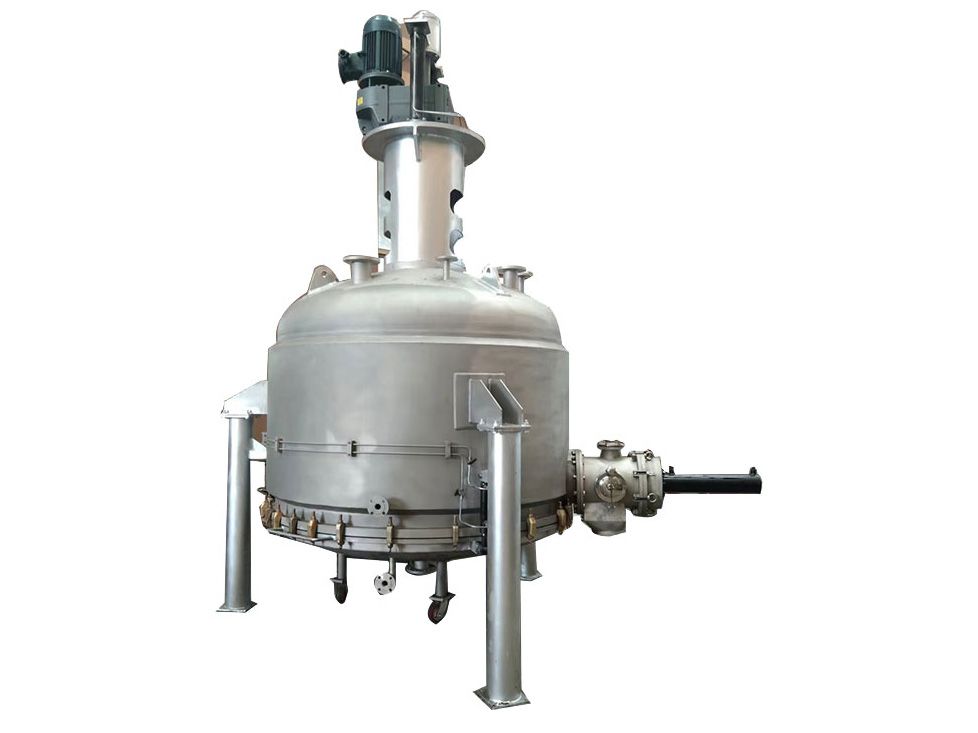

3-in-1 Filter Dryer

Filtering, Cake Washing, Drying

Weiying 3-in-1 filter dryer is a versatile system designed for filtering, cake washing, drying and solid discharge operations, which are handled in a single process vessel. This 3-in-1 filter dryer is an ideal alternative to filtration and drying equipment such as suction filter, filter press, double cone dryer and drying oven, and can be extensively used in pharmaceutical, chemical, agro chemical and food industries.
Our 3-in-1 filter dryer performs continuous operation within a fully closed vessel, it is typically suited for toxic chemical production or other applications requiring full sterility during the entire process.

  • Filtration:
    to separate solids from liquids, the filter cake thickness is up to 500mm.
  • Cake washing:
    to further purify the filter cake by eliminating the impurity in the mother liquor and removing the residual mother liquor from filtered solids. With the help of an agitator, the filter cake is mixed with clean washing liquid so that the cake is reslurried and washed thoroughly.
  • Drying:
    to dehydrate the filter cake, while the filter cake is agitated during the drying stage, the heating medium is fed into the side walls, bottom and stirrer blades to evaporate the solvents. The vacuum drying method is employed to make the evaporation faster, and the use of heated nitrogen improves heat transfer efficiency.
Features
  • Energy saving: low motor power (high speed ratio of gearbox: l=46.3)
  • Cleaning-In-Place (CIP) system, steam sterilization (122℃)
  • The gap between bottom plate and vessel is sealed by means of dual-channel O-ring, the sterile inner structure of vessel is concise, no dead corner, conforming to the requirements of GMP
  • Reduced labor intensity, without product contamination, fully compliant with the GMP guidelines
Technical Data
Model Vessel volume (m³) Filter area (㎡) Agitator stroke (mm) Motor power (kW)
1000 1.2 0.8 300 5.5
1200 1.5 1 300 5.5
1400 2.2 1.5 400 7.5
1600 3 2 400 7.5
1800 3.5 2.5 400 11
2000 4 3 400 11
2400 6 4.5 450 15
2800 9.5 6 450 18.5
3000 10.2 7 500 22
3200 12 8 550 30
3600 18 10 550 45
Related Products
  • PE/PA Microporous Filter
  • Candle Filter
  • Automatic Plate Type Hermetic Filter
  • Filter Dryer (3-in-1)
  • Filtration Machine with Cake Washing
  • Multi-Bag Filter
  • Vertical Pressure Leaf Filter
  • Pipeline Filter
  • Custom Industrial Filter
Get in Touch

If you have questions about our products or want to request a quotation, please feel free to contact us at any time.

Products
  • Industrial Centrifuges
    1. Automatic Bottom Discharge Vertical Peeler Centrifuge
    2. Automatic Top Suspended Peeler Centrifuge
    3. Top Discharge Bag Lifting Centrifuge
    4. Horizontal Filtering Centrifuge
    5. Decanter Centrifuge
    6. Fully Enclosed Top Discharge Centrifuge
  • Filtration Equipment
    1. PE/PA Microporous Filter
    2. Candle Filter
    3. Automatic Plate Type Hermetic Filter
    4. Filter Dryer (3-in-1)
    5. Filtration Machine with Cake Washing
    6. Multi-Bag Filter
    7. Vertical Pressure Leaf Filter
    8. Pipeline Filter
    9. Custom Industrial Filter
  • Drying Equipment
    1. High Speed Centrifugal Spray Dryer
    2. Vibrating Fluidized Bed Dryer
    3. Single-Layer / Multi-Layer Belt Dryer
    4. Rotary Flash Dryer
    5. Air Stream Dryer
    6. Fluid Bed Dryer
    7. High Efficiency Fluid Bed Dryer
    8. Horizontal Vacuum Paddle Dryer
    9. Conical Screw Vacuum Dryer
    10. Double Cone Vacuum Dryer
    11. Continuous Plate Dryer
    12. Paddle Dryer
    13. Rotary Drum Dryer
    14. Contact Drum Dryer
    15. Vacuum Freeze Dryer
    16. Hot Air Circulation Oven
    17. Tunnel Oven
  • Granulation Equipment
    1. Fluidized Bed Granulator
    2. High Speed Mixer / Granulator
    3. Solid Dosage Preparation Granulator
    4. Fluid Bed Granulating Coating Machine
    5. Spray Dryer Granulator
    6. Rotor Fluid-Bed Granulator / Coater
    7. Turbojet Fluid Bed Granulator Coater
    8. Rotary Extrusion Granulator
    9. Twin Screw Extruder
    10. Oscillating Granulator
    11. Dry Granulator
    12. Centrifugal Granulator / Coater
    13. High Efficiency Film Coating Machine
  • Auxiliary Equipment
    1. Multifunctional Extracting Tank
    2. Integrated Extraction System
    3. Alcohol Rectification Column
    4. Stainless Steel Liquid Dosing Tank
    5. Stainless Steel Fermentation Tank
    6. Alcohol Deposition Tank
    7. Stainless Steel Reaction Vessel / Crystallization Tank
    8. CIP Cleaning System
    9. Stainless Steel Single-Layer Storage Tank
    10. Stainless Steel Jacketed Tank
    11. Tubular Heat Exchanger
Explore More Products

Click on the categories to filter our product range

  • Horizontal Vacuum Paddle Dryer

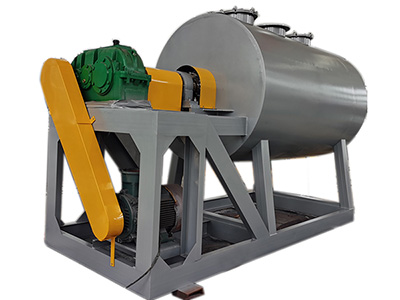

    Horizontal Vacuum Paddle Dryer

    Weiying ZPG series horizontal vacuum paddle dryer has a wide range of applications for material drying in the pharmaceutical, food, chemical and other industries.

  • Conical Screw Vacuum Dryer

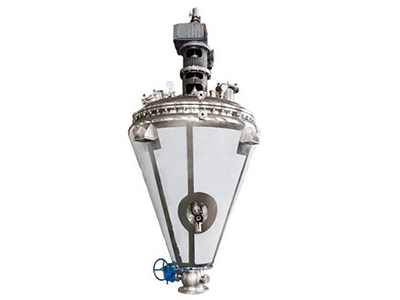

    Conical Screw Vacuum Dryer

    As versatile, vertical and fully closed vacuum drying equipment, Weiying LDG series conical screw vacuum dryer is mainly designed for drying, grinding and mixing powder materials in the pharmaceutical ...

  • Turbojet Fluid Bed Granulator Coater

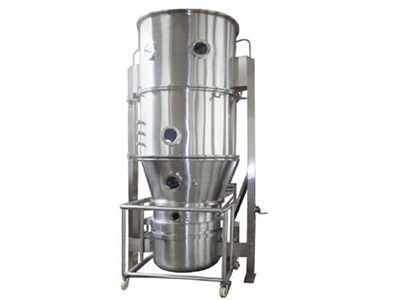

    Turbojet Fluid Bed Granulator Coater

    Weiying LBF series turbojet fluid bed granulator coater has a blade-type fluidized bed of a certain slope, which permits a gas flow from the blades into the treatment space.

  • Rotary Extrusion Granulator

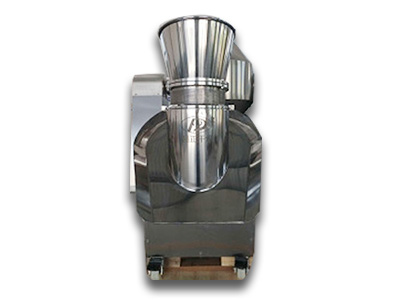

    Rotary Extrusion Granulator
