Fluidized Bed Granulator
Fluidized Bed Granulator
Request a Quote

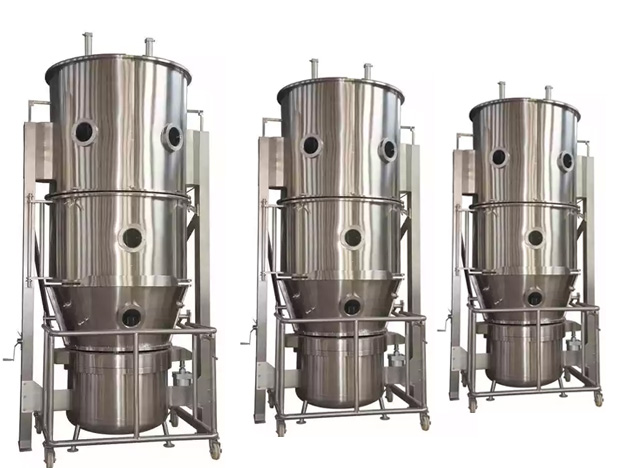

Fluidized Bed Granulator

Series FL

Weiying FL series fluidized bed granulator is specially designed for granulation and coating of powder or pellets in the pharmaceutical, food and agricultural industries.

The fluidized bed granulator has a wide range of applications, which are as follows:

Granulation and coating of medicine
  • Granulation: granules, tablets, powder and capsules;
  • Coating: granule, sustained-release granules, pellets protective coating, color coating, thin film coating and enteric coating;
Granulation and coating of food
  • Sugar, coffee, cocoa powder, cream, powdered juice, amino acids, seasoning and puffed food;
  • Granulation of pesticide, pigment and dyes;
  • Drying of powder, granules and raw materials in bulk;
Features
  • The fluidized bed granulation process can help enhance the flow properties of powders while reducing dust;
  • Through powder granulation, the dissolution behavior of granules can be optimized;
  • As one of the commonly used granulation equipment in the pharmaceutical and food industries, this fluidized bed granulator is multi-functional equipment in that mixing, granulation and drying are all carried out in the same equipment. Therefore, it’s very convenient for you to operate and manufacture materials;
  • An expanded chamber containing a set of filter bag has the capability to ensure the security of operation process;
  • Pressure relief holes are set. In this way, the fluidized bed granulator is provided to break up fluid under pressure by its inherent instability and its impact on the atmosphere. Once a sudden explosion occurs, the surrounding workers will not get hurt. And it will be of great significance if you want to purchase the equipment;
  • As a one-piece granulating system, the utilization of this fluidized bed granulator can significantly save labor cost and processing time.
  • The fluidized bed granulator is easy to load and discharge materials, as well as washing and cleaning. Therefore, the equipment complies with Good Manufacturing Practice (GMP) requirements;
Technical Data
Item Unit Type
3 5 25 30 60 120 200 300 500
Container Volume L 12 22 45 100 220 420 670 1000 1500
Diameter mm 300 400 550 700 1000 1200 1400 1600 1800
Capability Min kg 1.5 4 10 15 30 80 100 150 250
Max kg 4.5 6 20 45 90 160 300 450 750
Fan Capacity m³/h 1000 1200 1400 1800 3000 4500 6000 7000 8000
Pressure mmHg 375 375 480 480 950 950 950 950 950
Power kW 3 4 5.5 7.5 11 18.5 22 30 45
Steam consumption kg/h 15 23 42 70 140 211 282 366 451
Compressed air consumption m³/min 0.9 0.9 0.9 0.9 1.0 1,0 1.1 1.5 1.5
Weight of the main body kg 500 700 900 1000 1100 1300 1500 1800 2000
Steam pressure MPa 0.3-0.6
Temperature ℃ Adjustable form ambient to 120℃
Working time min 45-90 (depending on the properties of raw materials)
Field % ≥99
Noise dB (A) ≤75bB(A) (When installing, main machine is separated from fan)
Dimension (L×W×H) (m) m 1.0×0.6×2.1 1.2×0.7×2.3 1.25×0.9×2.5 1.6×1.1×2.5 1.85×1.4×3 2.2×1.65×3.3 2.34×1.7×3.8 2.8×2.0×4.0 3×2.25×4.4
