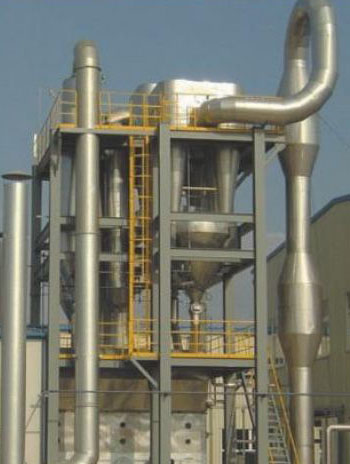

Air Stream Dryer
Air Stream Dryer

Air Stream Dryer

Series JG

Weiying Q/QG/JG series air stream dryer is primarily suitable for wet materials containing relatively much moisture and high viscous pastes. In addition, most of the time, the air stream dryer is also applied in those materials that are dried by other airflow drying methods, such as vinyl chloride-vinyl acetate copolymers, cellulose acetate, catalyst, CMC, CT-1 resin, coal sludge, clay, clay cement synthetic resin food, lime, biological products, etc.

Request a Quote
Technical Data
Model Water evaporation capacity (kg/h) Power (kW) Occupied area (m²) Height (m)
JG50 50 10 20 9
JG100 100 20 32 11
JG200 200 31 40 11
JG250 250 32 64 13
JG500 500 54 96 13
JG1000 1000 135 120 15
JG1500 1500 175 200 16
