Horizontal Filtering Centrifuge
Horizontal Filtering Centrifuge
Request a Quote

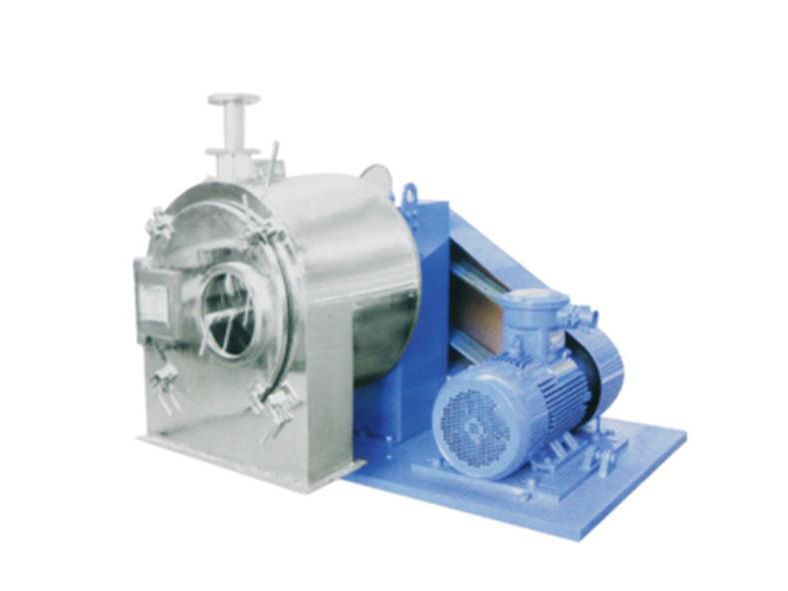

Horizontal Filtering Centrifuge

Series LWL

Weiying LWL series horizontal filtering centrifuge is solid-liquid separation equipment known for its low energy consumption, reliable performance and excellent separation efficiency. The horizontal filtering centrifuge carries out a continuous operation including feeding, filtration, washing and product discharge, delivering high level of automation and high production efficiency.

This horizontal filtering centrifuge is used in various processes, primarily in the chemical, fine chemical, food and pharmaceutical industries. We are happy to advise you regarding the selection of appropriate models of the horizontal filtering centrifuge to accommodate your applications and products that you need to separate. We invite you to send us requests, our engineers and service staff are always here for you.

Features
  • All key components, such as rotating bowl and conveyor screw, are made of corrosion-resistant stainless steel or titanium alloy;
  • Using special 25mm-thick filter screen results in better filtration performance while extending its service life;
  • Stepless speed regulation of bowl rotation;
  • The conveyor screw rotates at an adjustable differential speed, with either stepped speed regulation or stepless speed regulation;
  • The horizontal filtering centrifuge features a reliable lubrication system, providing a simplified way for lubrication;
  • Safe operation is guaranteed through protection measures, including rotating speed monitoring, vibration control, motor overload/overheat protection, screw zero differential protection;
  • Hydraulic differential controller can be optionally configured for high viscosity materials, ensuring stable operation;
Technical Data
Model LWL350 LWL450 LWL530 LWL630
Bowl diameter (mm) 350 450 530 630
Max. load (kg) 2-8 5-15 5-20 10-30
Max. rotating speed (rpm) 3000 2500 2000 1750
Centrifugal force (G) 1770 1580 1190 1080
Motor power (kW) 11 22 30 37
Dimension (L×W×H) (mm) 1400x1250×1150 1430x1360x1270 1700x1450×1400 1900x1600×1550
Weight (kg) 1000 1500 2000 2500
Related Products
  • Automatic Bottom Discharge Vertical Peeler Centrifuge
  • Automatic Top Suspended Peeler Centrifuge
  • Top Discharge Bag Lifting Centrifuge
  • Horizontal Filtering Centrifuge
  • Decanter Centrifuge
  • Fully Enclosed Top Discharge Centrifuge
Get in Touch

If you have questions about our products or want to request a quotation, please feel free to contact us at any time.

Products
  • Industrial Centrifuges
    1. Automatic Bottom Discharge Vertical Peeler Centrifuge
    2. Automatic Top Suspended Peeler Centrifuge
    3. Top Discharge Bag Lifting Centrifuge
    4. Horizontal Filtering Centrifuge
    5. Decanter Centrifuge
    6. Fully Enclosed Top Discharge Centrifuge
  • Filtration Equipment
    1. PE/PA Microporous Filter
    2. Candle Filter
    3. Automatic Plate Type Hermetic Filter
    4. Filter Dryer (3-in-1)
    5. Filtration Machine with Cake Washing
    6. Multi-Bag Filter
    7. Vertical Pressure Leaf Filter
    8. Pipeline Filter
    9. Custom Industrial Filter
  • Drying Equipment
    1. High Speed Centrifugal Spray Dryer
    2. Vibrating Fluidized Bed Dryer
    3. Single-Layer / Multi-Layer Belt Dryer
    4. Rotary Flash Dryer
    5. Air Stream Dryer
    6. Fluid Bed Dryer
    7. High Efficiency Fluid Bed Dryer
    8. Horizontal Vacuum Paddle Dryer
    9. Conical Screw Vacuum Dryer
    10. Double Cone Vacuum Dryer
    11. Continuous Plate Dryer
    12. Paddle Dryer
    13. Rotary Drum Dryer
    14. Contact Drum Dryer
    15. Vacuum Freeze Dryer
    16. Hot Air Circulation Oven
    17. Tunnel Oven
  • Granulation Equipment
    1. Fluidized Bed Granulator
    2. High Speed Mixer / Granulator
    3. Solid Dosage Preparation Granulator
    4. Fluid Bed Granulating Coating Machine
    5. Spray Dryer Granulator
    6. Rotor Fluid-Bed Granulator / Coater
    7. Turbojet Fluid Bed Granulator Coater
    8. Rotary Extrusion Granulator
    9. Twin Screw Extruder
    10. Oscillating Granulator
    11. Dry Granulator
    12. Centrifugal Granulator / Coater
    13. High Efficiency Film Coating Machine
  • Auxiliary Equipment
    1. Multifunctional Extracting Tank
    2. Integrated Extraction System
    3. Alcohol Rectification Column
    4. Stainless Steel Liquid Dosing Tank
    5. Stainless Steel Fermentation Tank
    6. Alcohol Deposition Tank
    7. Stainless Steel Reaction Vessel / Crystallization Tank
    8. CIP Cleaning System
    9. Stainless Steel Single-Layer Storage Tank
    10. Stainless Steel Jacketed Tank
    11. Tubular Heat Exchanger
Explore More Products

Click on the categories to filter our product range

  • Custom Industrial Filter

    Custom Industrial Filter

    Custom industrial filters are essential in numerous industries. As an industrial filter specialist, Weiying can help custom-manufacture various types of industrial filters from concept through to production.

  • Pipeline Filter

    Pipeline Filter

    Weiying XKJ series pipeline filters are a kind of particulate filters that remove dirt particles and other solid contaminants to provide protection for air and gas pipeline systems.

  • High Efficiency Fluid Bed Dryer

    High Efficiency Fluid Bed Dryer

    Weiying GFG series high efficiency fluid bed dryer is a round structured equipment mainly used for drying of wet granules and powder materials in the pharmaceutical, food, feed, chemical industries, etc.

  • Rotary Drum Dryer

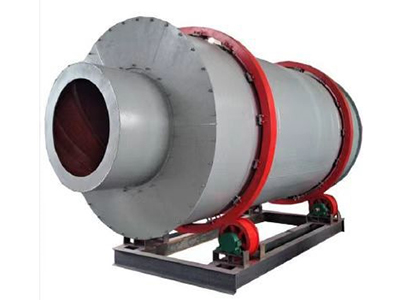

    Rotary Drum Dryer
