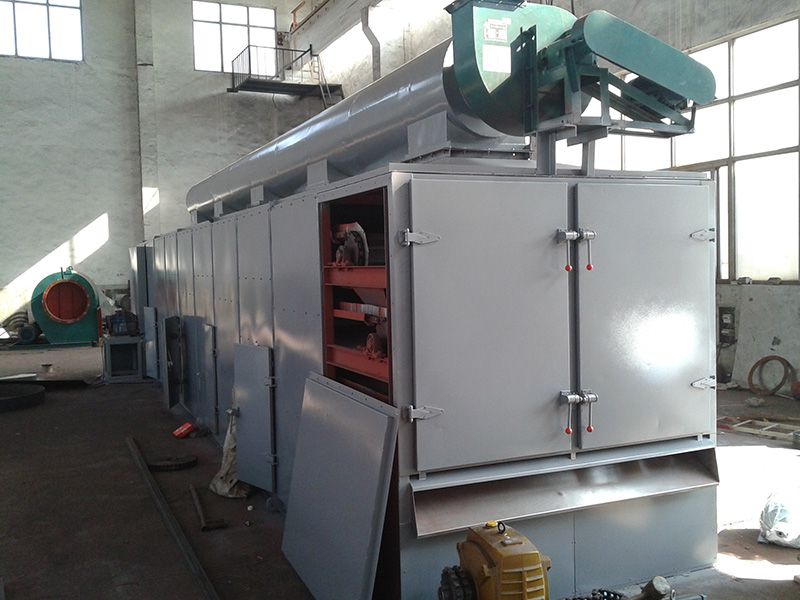

Single-Layer / Multi-Layer Belt Dryer
Single-Layer / Multi-Layer Belt Dryer

Single-Layer / Multi-Layer Belt Dryer

Series DW

Weiying DW series belt dryer machine is continuous drying equipment designed for drying various raw materials. Either single layer belt dryer or compact multi-layer belt dryer can be provided to meet your specific needs. Our belt dryers enable the materials to be evenly distributed on the conveyor belt by means of star distributor, vibrating belt, grinder and granulator. One or several heating units are equipped along the conveyor belt, and each heating unit has heater and circulation system. The hot air moves up and down when the conveyor belt passes through, therefore enabling the materials to be uniformly dried.

Request a Quote
Applications

DW series single-layer /multi-layer belt dryers can be widely used in chemical, food, pharmaceutical, building materials, electronics and other industries. It is absolutely suitable for the drying of tablets, strip, granular materials with good air permeability. In addition, it can also be used to dry materials after being processed by a granulator or extruder.

Processing principle

The wet material is distributed by the infeed conveyor onto a belt in an even layer. The heated drying air flows through the material layer and the drying belt. After that, the hot drying air is cooled and saturated by absorbing water from the material. At the belt end, the material layer is discharged from the dryer. The whole process is set by an automated process control system. As you can see, it is actually automated production.

Technical Data
Model DWC-20 DWC-25 DWC-32 4M DWC-36 4.5M DWC-48 6M DWC-60 7.5M DWC-80 10M
Feeding area (m²) 20 25 32 36 48 60 80
Working pressure (MPa) 0.4-0.7
Steam consumption (kg/h) 150-300 180-375 240-480 270-540 360-720 450-800 600-1200
Drying time (min) 20-30 60-600 100-1000 (Stepless control)
Drying capacity (kg/h) 100-200 125-250 160-320 180-360 300-480 300-600 400-800
Drive motor power (kW) 55 55 55 55 142 52 152
Weight (T) 8 8 8.5 10 11 13 15
Dimensions (mm) Length (mm) 8875 9875 11475 11475 14675 14675 15675
Width (mm) 2408 2408 2408 2408 2408 2840 2840
Height (mm) 3385 3385 3385 3385 3385 3385 3385
Related Products
  • High Speed Centrifugal Spray Dryer
  • Vibrating Fluidized Bed Dryer
  • Single-Layer / Multi-Layer Belt Dryer
  • Rotary Flash Dryer
  • Air Stream Dryer
  • Fluid Bed Dryer
  • High Efficiency Fluid Bed Dryer
  • Horizontal Vacuum Paddle Dryer
  • Conical Screw Vacuum Dryer
  • Double Cone Vacuum Dryer
  • Continuous Plate Dryer
  • Paddle Dryer
  • Rotary Drum Dryer
  • Contact Drum Dryer
  • Vacuum Freeze Dryer
  • Hot Air Circulation Oven
  • Tunnel Oven
Get in Touch

If you have questions about our products or want to request a quotation, please feel free to contact us at any time.

Products
  • Industrial Centrifuges
    1. Automatic Bottom Discharge Vertical Peeler Centrifuge
    2. Automatic Top Suspended Peeler Centrifuge
    3. Top Discharge Bag Lifting Centrifuge
    4. Horizontal Filtering Centrifuge
    5. Decanter Centrifuge
    6. Fully Enclosed Top Discharge Centrifuge
  • Filtration Equipment
    1. PE/PA Microporous Filter
    2. Candle Filter
    3. Automatic Plate Type Hermetic Filter
    4. Filter Dryer (3-in-1)
    5. Filtration Machine with Cake Washing
    6. Multi-Bag Filter
    7. Vertical Pressure Leaf Filter
    8. Pipeline Filter
    9. Custom Industrial Filter
  • Drying Equipment
    1. High Speed Centrifugal Spray Dryer
    2. Vibrating Fluidized Bed Dryer
    3. Single-Layer / Multi-Layer Belt Dryer
    4. Rotary Flash Dryer
    5. Air Stream Dryer
    6. Fluid Bed Dryer
    7. High Efficiency Fluid Bed Dryer
    8. Horizontal Vacuum Paddle Dryer
    9. Conical Screw Vacuum Dryer
    10. Double Cone Vacuum Dryer
    11. Continuous Plate Dryer
    12. Paddle Dryer
    13. Rotary Drum Dryer
    14. Contact Drum Dryer
    15. Vacuum Freeze Dryer
    16. Hot Air Circulation Oven
    17. Tunnel Oven
  • Granulation Equipment
    1. Fluidized Bed Granulator
    2. High Speed Mixer / Granulator
    3. Solid Dosage Preparation Granulator
    4. Fluid Bed Granulating Coating Machine
    5. Spray Dryer Granulator
    6. Rotor Fluid-Bed Granulator / Coater
    7. Turbojet Fluid Bed Granulator Coater
    8. Rotary Extrusion Granulator
    9. Twin Screw Extruder
    10. Oscillating Granulator
    11. Dry Granulator
    12. Centrifugal Granulator / Coater
    13. High Efficiency Film Coating Machine
  • Auxiliary Equipment
    1. Multifunctional Extracting Tank
    2. Integrated Extraction System
    3. Alcohol Rectification Column
    4. Stainless Steel Liquid Dosing Tank
    5. Stainless Steel Fermentation Tank
    6. Alcohol Deposition Tank
    7. Stainless Steel Reaction Vessel / Crystallization Tank
    8. CIP Cleaning System
    9. Stainless Steel Single-Layer Storage Tank
    10. Stainless Steel Jacketed Tank
    11. Tubular Heat Exchanger
Explore More Products

Click on the categories to filter our product range

  • Horizontal Filtering Centrifuge

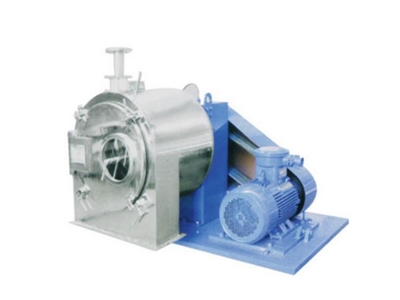

    Horizontal Filtering Centrifuge

    Weiying LWL series horizontal filtering centrifuge is solid-liquid separation equipment known for its low energy consumption, reliable performance and excellent separation efficiency.

  • Filter Dryer (3-in-1)

    Filter Dryer (3-in-1)

    Weiying 3-in-1 filter dryer is a versatile system designed for filtering, cake washing, drying and solid discharge operations, which are handled in a single process vessel.

  • Dry Granulator

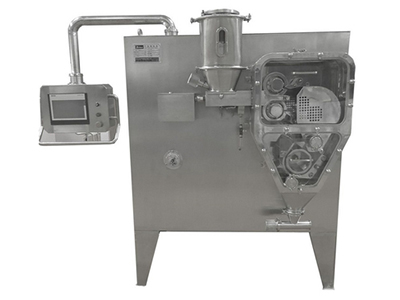

    Dry Granulator
