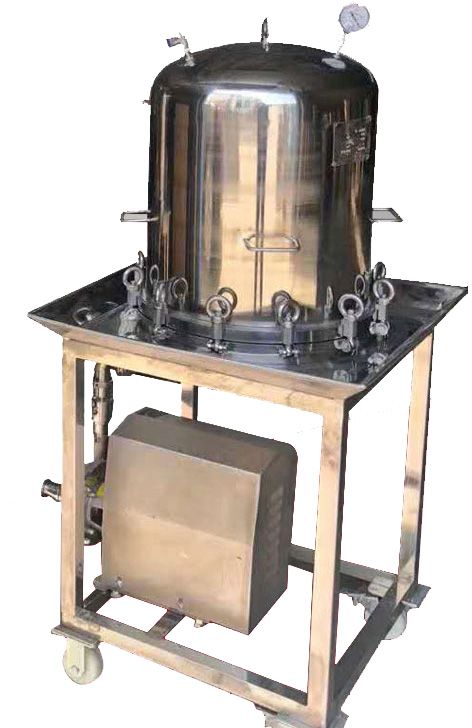

Vertical Pressure Leaf Filter

Series XKD

Weiying XKD series vertical pressure leaf filters are available in stainless steel jacketed filter and unjacketed filter. The stainless steel jacketed pressure leaf filter is well suited to use in pharmaceutical and fine chemical industries to solve the issue of crystallization caused by the extremely low temperature of the liquid. XKD series vertical pressure leaf filters are provided with two heating options, i.e. steam heating and electric heating. Stainless steel triple jacket is also available.

Technical Data
Model Quantity of filter leaves Filter area (㎡) Filter material size
 (mm)
Microporous filter membrane
 (μm)
Filtration pressure
 (MPa)
Flow rate
 (T/h)
Storage of activated carbon
 (kg)
Motor power
 (kW)
XKD-300 5 0.7 310 0.22-3 0.2-0.6 4 3 0.75
XKD-300 10 1.4 310 0.22-3 0.2-0.6 8 6 1.1
XKD-300 15 2.1 310 0.22-3 0.2-0.6 12 9 1.5
XKD-300 20 2.8 310 0.22-3 0.2-0.6 16 12 2.2
XKD-400 10 2.5 410 0.22-3 0.2-0.6 14 15 2.2
XKD-400 15 3.75 410 0.22-3 0.2-0.6 21 20 2.2
XKD-400 20 5 410 0.22-3 0.2-0.6 28 30 3
XKD-500 10 3.9 510 0.22-3 0.2-0.6 25 35 3
XKD-500 20 7.8 510 0.22-3 0.2-0.6 50 70 3
XKD-550 10 4.75 560 0.22-3 0.2-0.6 35 40 4
XKD-550 20 9.5 560 0.22-3 0.2-0.6 70 80 4
XKD-600 10 5.65 610 0.22-3 0.2-0.6 60 100 4
XKD-600 15 8.47 610 0.22-3 0.2-0.6 90 150 4
XKD-600 20 11.3 610 0.22-3 0.2-0.6 120 200 4
XKD-800 10 10 810 0.22-3 0.2-0.6 100 150 4
XKD-800 20 20 810 0.22-3 0.2-0.6 200 300 4
Related Products
  • PE/PA Microporous Filter
  • Candle Filter
  • Automatic Plate Type Hermetic Filter
  • Filter Dryer (3-in-1)
  • Filtration Machine with Cake Washing
  • Multi-Bag Filter
  • Vertical Pressure Leaf Filter
  • Pipeline Filter
  • Custom Industrial Filter
Get in Touch

If you have questions about our products or want to request a quotation, please feel free to contact us at any time.

Products
  • Industrial Centrifuges
    1. Automatic Bottom Discharge Vertical Peeler Centrifuge
    2. Automatic Top Suspended Peeler Centrifuge
    3. Top Discharge Bag Lifting Centrifuge
    4. Horizontal Filtering Centrifuge
    5. Decanter Centrifuge
    6. Fully Enclosed Top Discharge Centrifuge
  • Filtration Equipment
    1. PE/PA Microporous Filter
    2. Candle Filter
    3. Automatic Plate Type Hermetic Filter
    4. Filter Dryer (3-in-1)
    5. Filtration Machine with Cake Washing
    6. Multi-Bag Filter
    7. Vertical Pressure Leaf Filter
    8. Pipeline Filter
    9. Custom Industrial Filter
  • Drying Equipment
    1. High Speed Centrifugal Spray Dryer
    2. Vibrating Fluidized Bed Dryer
    3. Single-Layer / Multi-Layer Belt Dryer
    4. Rotary Flash Dryer
    5. Air Stream Dryer
    6. Fluid Bed Dryer
    7. High Efficiency Fluid Bed Dryer
    8. Horizontal Vacuum Paddle Dryer
    9. Conical Screw Vacuum Dryer
    10. Double Cone Vacuum Dryer
    11. Continuous Plate Dryer
    12. Paddle Dryer
    13. Rotary Drum Dryer
    14. Contact Drum Dryer
    15. Vacuum Freeze Dryer
    16. Hot Air Circulation Oven
    17. Tunnel Oven
  • Granulation Equipment
    1. Fluidized Bed Granulator
    2. High Speed Mixer / Granulator
    3. Solid Dosage Preparation Granulator
    4. Fluid Bed Granulating Coating Machine
    5. Spray Dryer Granulator
    6. Rotor Fluid-Bed Granulator / Coater
    7. Turbojet Fluid Bed Granulator Coater
    8. Rotary Extrusion Granulator
    9. Twin Screw Extruder
    10. Oscillating Granulator
    11. Dry Granulator
    12. Centrifugal Granulator / Coater
    13. High Efficiency Film Coating Machine
  • Auxiliary Equipment
    1. Multifunctional Extracting Tank
    2. Integrated Extraction System
    3. Alcohol Rectification Column
    4. Stainless Steel Liquid Dosing Tank
    5. Stainless Steel Fermentation Tank
    6. Alcohol Deposition Tank
    7. Stainless Steel Reaction Vessel / Crystallization Tank
    8. CIP Cleaning System
    9. Stainless Steel Single-Layer Storage Tank
    10. Stainless Steel Jacketed Tank
    11. Tubular Heat Exchanger
Explore More Products

Click on the categories to filter our product range

  • Vacuum Freeze Dryer

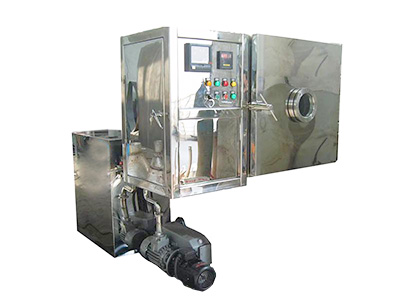

    Vacuum Freeze Dryer

    Weiying ZLD series vacuum freeze dryer is used for drying many different types of goods and is widely used in multiple industries, such as pharmaceutical, food and technological industries.

  • Contact Drum Dryer

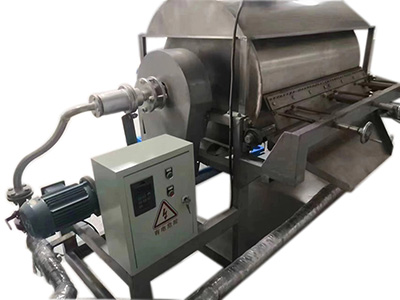

    Contact Drum Dryer

    Weiying HG series contact drum dryer is commonly designed for processing and drying of viscous and paste-like materials in the food, chemical, pharmaceutical and other industries.

  • Centrifugal Granulator / Coater

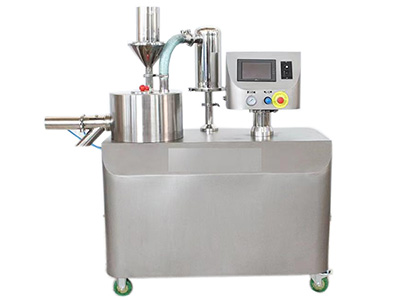

    Centrifugal Granulator / Coater

    Weiying BZJ series centrifugal coater is not only used in pharmaceutical industry, but also widely applied in chemical, health products, food, cosmetics and other industries.

  • High Efficiency Film Coating Machine

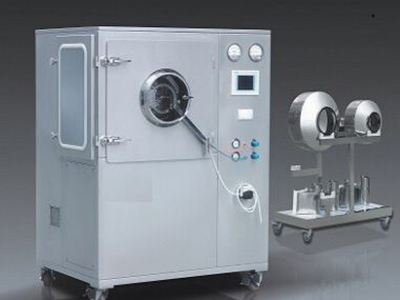

    High Efficiency Film Coating Machine
