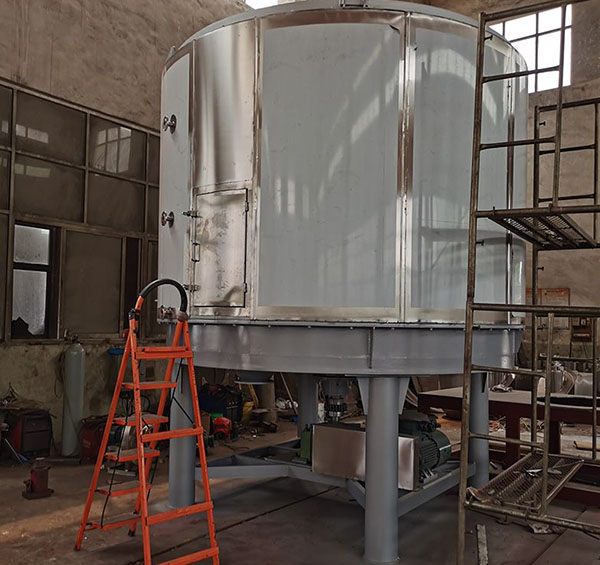

Continuous Plate Dryer
Continuous Plate Dryer

Continuous Plate Dryer

Series PLG

Weiying PLG series continuous plate dryer is mainly used for continuous drying of free-flowing bulk materials. It has been proven useful in multiple applications and is available in atmospheric, gas-tight or vacuum configurations. Furthermore, this equipment can gently dry materials without impacting the environment in chemical, pharmaceutical, pesticide, food, feed and agricultural by-product processing industries. With high thermal efficiency, low energy consumption, small footprint, simple configuration, and convenient operation and control, this continuous plate dryer has been well received and highly recognized in relevant professional industries. Additionally, we can provide a series of continuous plate dryers, as well as a variety of auxiliary equipment to meet the needs of our customers from all walks of life.

Request a Quote
Features
  • Specifications of the continuous plate dryer vary from 1200, 1500, 2200 to 3000;
  • High quality of final products due to precise control of drying temperature and retention time;
  • Maximum flexibility for the drying process thanks to optimization of feeding layer depth and speed of the main spindle;
  • Accurate temperature control when heating or cooling specific materials;
  • The continuous plate dryer keeps on tumbling thereby all the portions of the materials are subjected to hot air and dried materials are disposed from bottom with no human interference, so as to avoid problem of contamination;
  • Minimum energy requirement due to efficient contact drying;
  • Easy to clean and easy inspection through large access doors;
  • Thin feeding layer and low main spindle speed and high standard transmission system result in high thermal efficiency and low energy consumption;
  • Atmospheric configuration: Minimum dust load;
  • Gas-tight configuration: Easy solvent recovery;
  • Vacuum configuration: The continuous plate dryer is suitable for drying heat-sensitive materials;
  • Easy to transport, deliver and install;
  • Vertical installation with small occupied area and full drying area;
Technical Data
Model Exterior diameter (mm) Height (mm) Drying area (m2) Power (kW)
1200/4 1850 2608 3.3 1.1
1200/6 3028 4.9
1200/8 3448 6.6 1.5
1200/10 3868 8.2
1200/12 4288 9.9
1500/6 2100 3022 8.0 2.2
1500/8 3442 10.7
1500/10 3862 13.4
1500/12 4282 16.1 3.0
1500/14 4702 18.8
1500/16 5122 21.5
2200/6 2900 3262 18.5 3.0
2200/8 3682 24.6
2200/10 4102 30.8
2200/12 4522 36.9 5.5
2200/14 4942 43.1
2200/16 5362 49.3 4.0
2200/18 2900 5782 55.4 5.5
2200/20 6202 61.6
2200/22 6622 67.7 7.5
2200/24 7042 73.9
2200/26 7462 80.0
3000/8 3800 4050 48 11
3000/10 4650 60
3000/12 5250 72
3000/14 5850 84
3000/16 6450 96
3000/18 7050 108 13
3000/20 7650 120
3000/22 8250 132
3000/24 8850 144
3000/26 9450 156 15
3000/28 10050 168
3000/30 10650 180
Related Products
  • High Speed Centrifugal Spray Dryer
  • Vibrating Fluidized Bed Dryer
  • Single-Layer / Multi-Layer Belt Dryer
  • Rotary Flash Dryer
  • Air Stream Dryer
  • Fluid Bed Dryer
  • High Efficiency Fluid Bed Dryer
  • Horizontal Vacuum Paddle Dryer
  • Conical Screw Vacuum Dryer
  • Double Cone Vacuum Dryer
  • Continuous Plate Dryer
  • Paddle Dryer
  • Rotary Drum Dryer
  • Contact Drum Dryer
  • Vacuum Freeze Dryer
  • Hot Air Circulation Oven
  • Tunnel Oven
Get in Touch

If you have questions about our products or want to request a quotation, please feel free to contact us at any time.

Products
  • Industrial Centrifuges
    1. Automatic Bottom Discharge Vertical Peeler Centrifuge
    2. Automatic Top Suspended Peeler Centrifuge
    3. Top Discharge Bag Lifting Centrifuge
    4. Horizontal Filtering Centrifuge
    5. Decanter Centrifuge
    6. Fully Enclosed Top Discharge Centrifuge
  • Filtration Equipment
    1. PE/PA Microporous Filter
    2. Candle Filter
    3. Automatic Plate Type Hermetic Filter
    4. Filter Dryer (3-in-1)
    5. Filtration Machine with Cake Washing
    6. Multi-Bag Filter
    7. Vertical Pressure Leaf Filter
    8. Pipeline Filter
    9. Custom Industrial Filter
  • Drying Equipment
    1. High Speed Centrifugal Spray Dryer
    2. Vibrating Fluidized Bed Dryer
    3. Single-Layer / Multi-Layer Belt Dryer
    4. Rotary Flash Dryer
    5. Air Stream Dryer
    6. Fluid Bed Dryer
    7. High Efficiency Fluid Bed Dryer
    8. Horizontal Vacuum Paddle Dryer
    9. Conical Screw Vacuum Dryer
    10. Double Cone Vacuum Dryer
    11. Continuous Plate Dryer
    12. Paddle Dryer
    13. Rotary Drum Dryer
    14. Contact Drum Dryer
    15. Vacuum Freeze Dryer
    16. Hot Air Circulation Oven
    17. Tunnel Oven
  • Granulation Equipment
    1. Fluidized Bed Granulator
    2. High Speed Mixer / Granulator
    3. Solid Dosage Preparation Granulator
    4. Fluid Bed Granulating Coating Machine
    5. Spray Dryer Granulator
    6. Rotor Fluid-Bed Granulator / Coater
    7. Turbojet Fluid Bed Granulator Coater
    8. Rotary Extrusion Granulator
    9. Twin Screw Extruder
    10. Oscillating Granulator
    11. Dry Granulator
    12. Centrifugal Granulator / Coater
    13. High Efficiency Film Coating Machine
  • Auxiliary Equipment
    1. Multifunctional Extracting Tank
    2. Integrated Extraction System
    3. Alcohol Rectification Column
    4. Stainless Steel Liquid Dosing Tank
    5. Stainless Steel Fermentation Tank
    6. Alcohol Deposition Tank
    7. Stainless Steel Reaction Vessel / Crystallization Tank
    8. CIP Cleaning System
    9. Stainless Steel Single-Layer Storage Tank
    10. Stainless Steel Jacketed Tank
    11. Tubular Heat Exchanger
Explore More Products

Click on the categories to filter our product range

  • Automatic Top Suspended Peeler Centrifuge

    Automatic Top Suspended Peeler Centrifuge

    Weiying PAUT series automatic top suspended peeler centrifuge is mainly used for solids and liquids separation applications ...

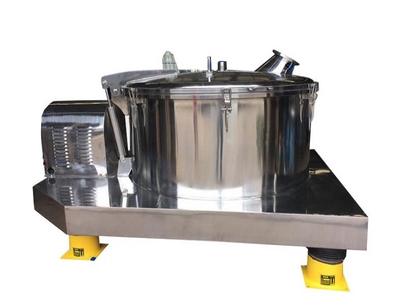

  • Top Discharge Bag Lifting Centrifuge

    Top Discharge Bag Lifting Centrifuge

    Weiying PSD series top discharge bag lifting centrifuge is a solid-liquid separation system used in the industries of pharmaceutical, chemical ...

  • Candle Filter

    Candle Filter

    Weiying XKB series candle filter is primarily used for clarifying liquids with high content of solids. It comprises a group of columnar filter elements enclosed inside a pressure vessel which requires small floor space ...

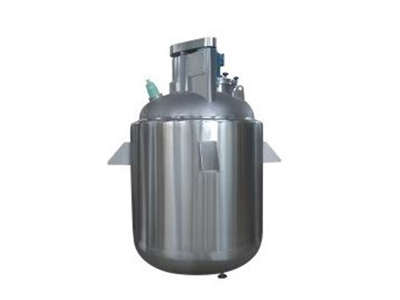

  • Stainless Steel Reaction Vessel / Crystallization Tank
