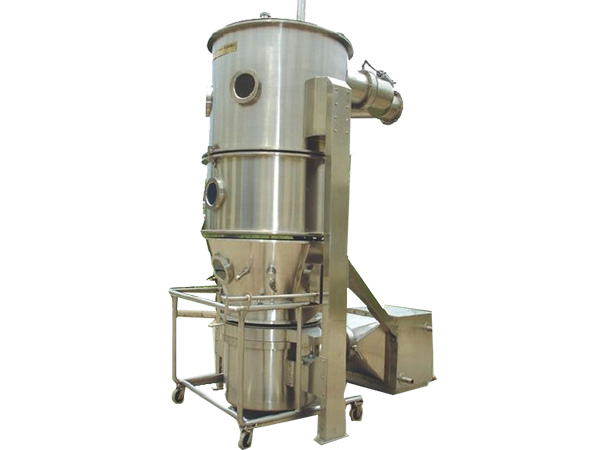

Rotor Fluid-Bed Granulator / Coater
Rotor Fluid-Bed Granulator / Coater

Rotor Fluid-Bed Granulator / Coater

Series XLB

Weiying XLB series rotor fluid-bed granulator is a highly qualified granulator designed for mixing, pelletizing, granulating and drying particles in various fields or industries, such as chemical and pharmaceutical industries. Powder or particles in this rotor fluid-bed granulator are mixed and moistened. With the fluid-bed rotor, solvents or binders are added tangentially. Therefore, it helps manufacture more regularly round shaped granules, as well as continuous and even thin films.

During processing, the powder bed is set into a centrifugal motion by means of the rotor. A spiral movement of the powder bed occurs due to the process air, which is fed through a variable air gap along the edge of the rotor disc.

Request a Quote
Features
  • The interior and exterior parts of this rotor fluid-bed granulator are totally made of high quality stainless steel that are convenient for cleaning and washing with no dead corner, therefore complying with GMP standards;
  • The rotor fluid-bed granulator can manufacture optimum particles that are uniformly round with a defined size;
  • Mixing, pelletizing, granulating and drying are finished in the same machine, which can greatly increase production-process efficiency;
Technical Data
Item Specification 1.5 10 20 30 60 120
Container volume L 5 30 60 105 180 420
Capacity kg/batch 0.5--1.5 3--10 8--20 10--30 20--60 40--120
Power of rotating motor kW 0.55 1.5 4 5.5 7.5 11
Power of fan kW 4 5.5 7.5 15 18.5 22
Compressed air Pressure MPa
Consumption kg/h 6 42 84 166 250 332
Steam Pressure MPa
Consumption m³/min 0.3 0.6 0.6 1.1 1.8 2.4
Installation size for reference H1 (mm) 2600 2250 2850 2850 330 3500
H2 (mm) 320 490 590 690 790
H3 (mm) 2050 2600 2600 3080 3280
Φ1 (mm) 400 700 1000 1200 1400 1600
Φ2 (mm) 180 180 280 280 280 315
B1 (mm) 1650 1160 1460 1660 1860 2060
B2 (mm) 1800 2460 2860 3260 3660
L (mm) 1250 1530 1650 1650 1750

Note: All parameters are for reference only, depending on material condition.
