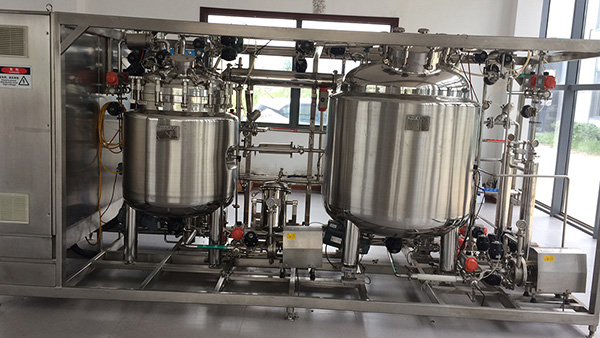

Stainless Steel Liquid Dosing Tank
Stainless Steel Liquid Dosing Tank

Stainless Steel Liquid Dosing Tank

Series WJG

Weiying stainless steel liquid dosing tank is a perfect choice for industrial heating and insulation processes requiring economic efficiency. This stainless steel tank is manufactured, pressure-tested and accepted in accordance with the “Technical Specifications of Welded Steel Containers”. We offer our customers various models of stainless steel liquid dosing tank with volume options from 100L to 10,000L, which are designed and manufactured to meet customers' individual needs.

Request a Quote
Features
  • The agitator shaft is sealed using hygienic mechanical seal, and the gear unit is from world-renowned brands such as Germany FLENDER or SEW, with 36-53rpm of stirring speed. It can also be controlled by frequency converter;
  • Inner body of the stainless steel liquid dosing tank is manufactured from 316L stainless steel or 304 stainless steel. It adopts internationally accepted ISO standard quick-fit chuck;
  • The stainless steel liquid dosing tank is equipped with liquid level gauge (non-contact ultrasonic wave, static pressure variable transmission or glass tube type), breathing apparatus, steam sterilization outlet, thermometer (digital display or dial type), light hole mirror, several liquid inlet and outlet, and manhole;
  • Internal material: SUS316L (imported from Japan);
  • Internal degree of finish: 0.28~0.45μm;
  • External material: SUS304 mirror finish stainless steel;
  • Working pressure: atmospheric pressure;
  • Working temperature: 60~100℃;
  • Sterilization pressure: 0.15-0.3MPa;
  • Sterilization temperature: 121~132℃;
