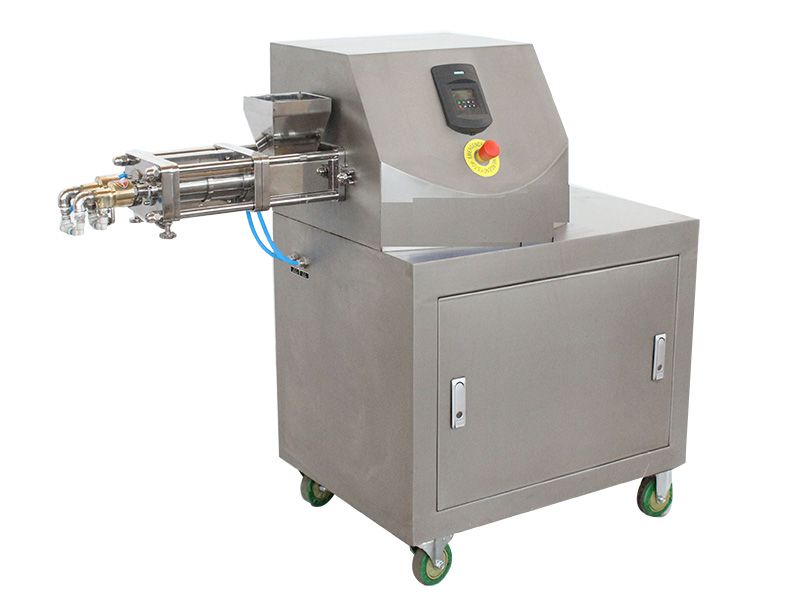

Twin Screw Extruder
Twin Screw Extruder

Twin Screw Extruder

Series SJT

Weiying SJT series twin screw extruder is widely used in pharmaceutical, food, chemical and other industrial fields of spherical granulation. It is particularly useful in the pharmaceutical industry, making it more accessible to research and develop new varieties.

Request a Quote
Features
  • The twin screw extruder has co-rotating screws in a closed barrel, which can eliminate stagnant zones over the entire length of the process section. This results in high efficiency and perfect cleaning mode;
  • Productive -greater intake capacity over traditional extruders;
  • This twin screw extruder adopts frequency conversion to control the screw speed in real time to adapt to the actual extruding process needs, so as to achieve optimal extruding effect;
  • Various sized screws for maximum flexibility;
  • This high-performing, low-maintenance twin screw extruder delivers the power and accuracy that you require for high-quality compounding and extruding;
  • The main parts of the screw extruder can be easily disassembled, making it simple to maintain and clean;
Technical Data
Model Capacity (kg/h) Diameter of pellet (mm) Power (kW) Screw speed (rpm)
60 60--80 0.8--3.5 3 0--100
100 80--100 0.8--3.5 7.5 0--100
150 100--150 0.8--3.5 11 0--80
200 150--200 0.8--3.5 18.5 0--80
