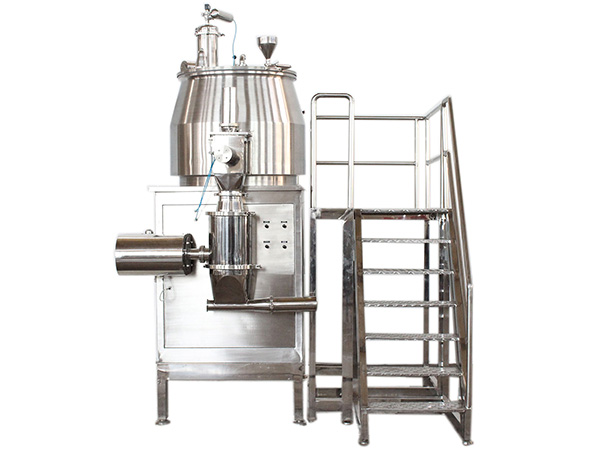

High Speed Mixer / Granulator
High Speed Mixer / Granulator

High Speed Mixer / Granulator

Series GHL

Weiying GHL series high speed granulator is a highly efficient equipment mainly adopting horizontal cylinder or conical structures. This high speed granulator, or you can also call it high speed mixer, is mainly involved in both drying mixing and humidity mixing. In the process of manufacturing granules, adhesive agent is a must.

Request a Quote
Features
  • The high speed granulator is provided with options of horizontal cylinder and conical structures with reasonable structure designs, so you can choose what you want;
  • Dry mixing, humid mixing and granulating are finished in the same sealed container without dead corner, which complies with the requirements of GMP;
  • The entire granulating process is highly efficient and energy-saving due to its relatively short processing cycle;
  • Compared with traditional techniques, there is a significant number of 25% of adhesive agent being saved and the drying time is greatly shortened. More specifically, the dry mixing time is merely 2 minutes and the granulating time is about 1-4 minutes, which means the efficiency of the high speed granulator is greatly improved;
  • This high speed granulator can manufacture most uniform granules, so that it can supply optimal granules in preparation for the tablets pressing stage;
  • With strictly protective measures, workers can be better protected in the whole process;
  • Where there exists big difference between principal agents and pharmaceutical excipient, there is no agent stratification between them;
Flow chart
  • Adhesive
  • Cutting
  • Powder
  • Dry mixing
  • Humidity mixing
  • Granule
Technical Data
Item 7/2.5 10 50 100 150 200 250 300 400 600 800--1500
Capacity (kg/ batch) 0.3--1 3 15 35 50 60 8 100 135 200 Design that are tailored to clients
Granules size (mesh) 20--80
Working time (min) 5--7
Container volume(L) 7/2.5 10 50 100 150 200 250 300 400 600
Mixing power (kW) 0.75 2.2 4/5.5 6.5/8 6.5/8 11/14 11/14 13/16 18.5/22 22/28
Cutting power (kW) 0.75 1.1 1.3/1.8 2.4/3 2.4/3 4.5/5.5 4.5/5.5 4.5/5.5 6.5/8 9/11
Mixing speed (r/min) 30--1000 30--600 200/400 200/400 180/270 180/270 180/270 140/220 106/155 80/120
Cutting speed (r/min) 300--3000 1500/3000
Pressure of compressed air (MPa) 0.3--0.6
Consumption of compressed air (m/min) 0.1 0.11 0.13 0.2 0.25 0.25 0.3 0.4 0.4
Weight(kg) 150 300 400 800 900 1200 1500 1550 1650 1800
Dimension (L×W×H) (mm) 800×450× 900 1250×550× 1160 1730×750× 1610 1950×750× 1810 1950×750× 1810 2210×880× 2000 2210×880× 2000 2310×1050× 2000 2485×1080× 2050 2585×1400× 2100

Note: All parameters are for reference only, depending on material condition.

Related Products
  • Fluidized Bed Granulator
  • High Speed Mixer / Granulator
  • Solid Dosage Preparation Granulator
  • Fluid Bed Granulating Coating Machine
  • Spray Dryer Granulator
  • Rotor Fluid-Bed Granulator / Coater
  • Turbojet Fluid Bed Granulator Coater
  • Rotary Extrusion Granulator
  • Twin Screw Extruder
  • Oscillating Granulator
  • Dry Granulator
  • Centrifugal Granulator / Coater
  • High Efficiency Film Coating Machine
Get in Touch

If you have questions about our products or want to request a quotation, please feel free to contact us at any time.

Products
  • Industrial Centrifuges
    1. Automatic Bottom Discharge Vertical Peeler Centrifuge
    2. Automatic Top Suspended Peeler Centrifuge
    3. Top Discharge Bag Lifting Centrifuge
    4. Horizontal Filtering Centrifuge
    5. Decanter Centrifuge
    6. Fully Enclosed Top Discharge Centrifuge
  • Filtration Equipment
    1. PE/PA Microporous Filter
    2. Candle Filter
    3. Automatic Plate Type Hermetic Filter
    4. Filter Dryer (3-in-1)
    5. Filtration Machine with Cake Washing
    6. Multi-Bag Filter
    7. Vertical Pressure Leaf Filter
    8. Pipeline Filter
    9. Custom Industrial Filter
  • Drying Equipment
    1. High Speed Centrifugal Spray Dryer
    2. Vibrating Fluidized Bed Dryer
    3. Single-Layer / Multi-Layer Belt Dryer
    4. Rotary Flash Dryer
    5. Air Stream Dryer
    6. Fluid Bed Dryer
    7. High Efficiency Fluid Bed Dryer
    8. Horizontal Vacuum Paddle Dryer
    9. Conical Screw Vacuum Dryer
    10. Double Cone Vacuum Dryer
    11. Continuous Plate Dryer
    12. Paddle Dryer
    13. Rotary Drum Dryer
    14. Contact Drum Dryer
    15. Vacuum Freeze Dryer
    16. Hot Air Circulation Oven
    17. Tunnel Oven
  • Granulation Equipment
    1. Fluidized Bed Granulator
    2. High Speed Mixer / Granulator
    3. Solid Dosage Preparation Granulator
    4. Fluid Bed Granulating Coating Machine
    5. Spray Dryer Granulator
    6. Rotor Fluid-Bed Granulator / Coater
    7. Turbojet Fluid Bed Granulator Coater
    8. Rotary Extrusion Granulator
    9. Twin Screw Extruder
    10. Oscillating Granulator
    11. Dry Granulator
    12. Centrifugal Granulator / Coater
    13. High Efficiency Film Coating Machine
  • Auxiliary Equipment
    1. Multifunctional Extracting Tank
    2. Integrated Extraction System
    3. Alcohol Rectification Column
    4. Stainless Steel Liquid Dosing Tank
    5. Stainless Steel Fermentation Tank
    6. Alcohol Deposition Tank
    7. Stainless Steel Reaction Vessel / Crystallization Tank
    8. CIP Cleaning System
    9. Stainless Steel Single-Layer Storage Tank
    10. Stainless Steel Jacketed Tank
    11. Tubular Heat Exchanger
Explore More Products

Click on the categories to filter our product range

  • Filter Dryer (3-in-1)

    Filter Dryer (3-in-1)

    Weiying 3-in-1 filter dryer is a versatile system designed for filtering, cake washing, drying and solid discharge operations, which are handled in a single process vessel.

  • Filtration Machine with Cake Washing

    Filtration Machine with Cake Washing

    This filtration machine from Weiying is a solid-liquid separation equipment with functions of filtration, cake washing and discharge. It is widely used in chemical, pharmaceutical and food industries.

  • Multi-Bag Filter

    Multi-Bag Filter

    Weiying DL series multi-bag filter is a kind of multipurpose filtration equipment with a small and robust structure that is built to accommodate requirements of high efficiency, flexible control, energy saving and airtight operation.

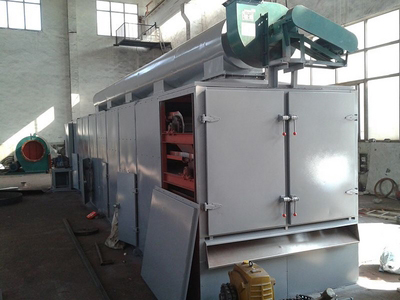

  • Single-Layer / Multi-Layer Belt Dryer
