Fully Enclosed Top Discharge Centrifuge
Fully Enclosed Top Discharge Centrifuge
Request a Quote

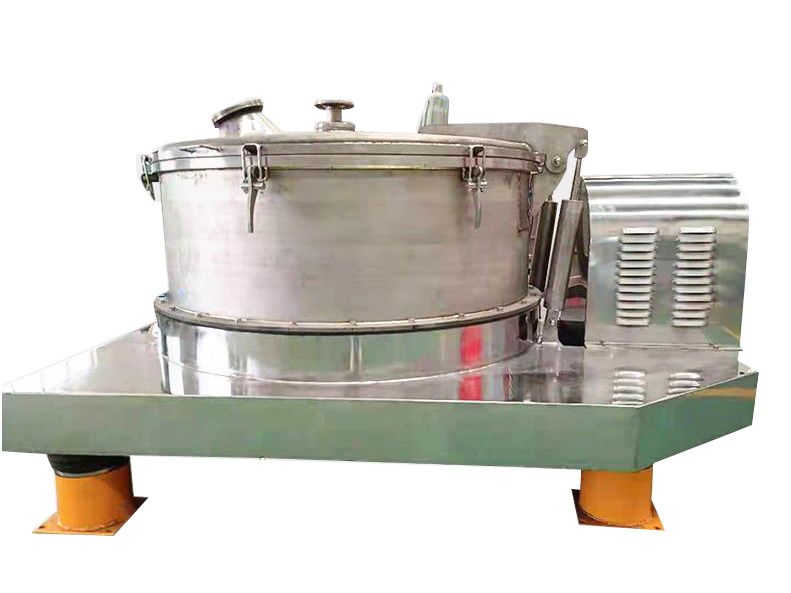

Fully Enclosed Top Discharge Centrifuge

Series PSB

Weiying PSB series fully enclosed top discharge centrifuge is a vertical centrifuge used to separate solid particles from suspension liquid in various industries, such as pharmaceutical, chemical, fine chemical and food products.

Features
  • Rational structure design efficiently eliminates the dead corners for solid accumulation, the surface of structural parts is polished and smooth to facilitate the residual heel removal;
  • All parts in contact with the product are made of high grade stainless steel;
  • The hinged cover allows operator to access the space between the shell and basket for easy cleaning and maintenance;
  • The top discharge centrifuge is mounted on inertia plate to magnify the force of gravity, thus ensuring the operational stability;
  • Vibration-isolating damper is available for increased resistance to vibrations, which simplifies routine maintenance;
  • The centrifuge cover is provided with feed pipe, wash pipe, sight glass and light hole;
  • CIP (cleaning-in-place) system can be optionally configured for thorough cleaning of the entire fully enclosed top discharge centrifuge from inner wall to outer shell, as well as interior /exterior surface of rotating basket and other difficult-to-access parts, ensuring that the top discharge centrifuge comply with GMP requirements;
  • This top discharge centrifuge is suitable for suspension containing solid particles, which can be granular or fibrous. Grains are less prone to break, ensuring the integrity of products;
  • Variable frequency drive is employed to guarantee stable start-up, and the centrifugal force is adjustable;
  • Fully closed structure is provided with silicone rubber or fluorine rubber sealing parts for tight seal effect;
  • A nitrogen protection system is optional for explosion-proof purpose, this makes the fully enclosed top discharge centrifuge suitable for materials containing toxic, flammable or hazardous substances;
Technical Data
Model PSB300 PSB450 PS06OO PSB800 PSB1000 PS81200 PSB1250 PSB15O0
Basket diameter (mm) 300 450 600 800 1000 1200 1250 1500
Basket volume (L) 7 20 40 100 140 230 310 600
Max. load (kg) 10 25 70 140 200 300 420 800
Max. rotating speed (rpm) 2500 1900 1500 1200 1000 800 960 850
Centrifugal force (G) 1050 910 750 645 560 430 645 605
Motor power (kW) 1.1 2.2 3 5.5 7.5 11 18.5 22
Dimension (L×W×H) (mm) 900×520×700 1000×700×720 1300×950×1000 1680×1200×1300 1950×1500×1300 2250×1800×1100 2400×1700×1650 2700×2100×1580
Weight (kg) 150 200 1000 1300 1800 2200 3200 4500
