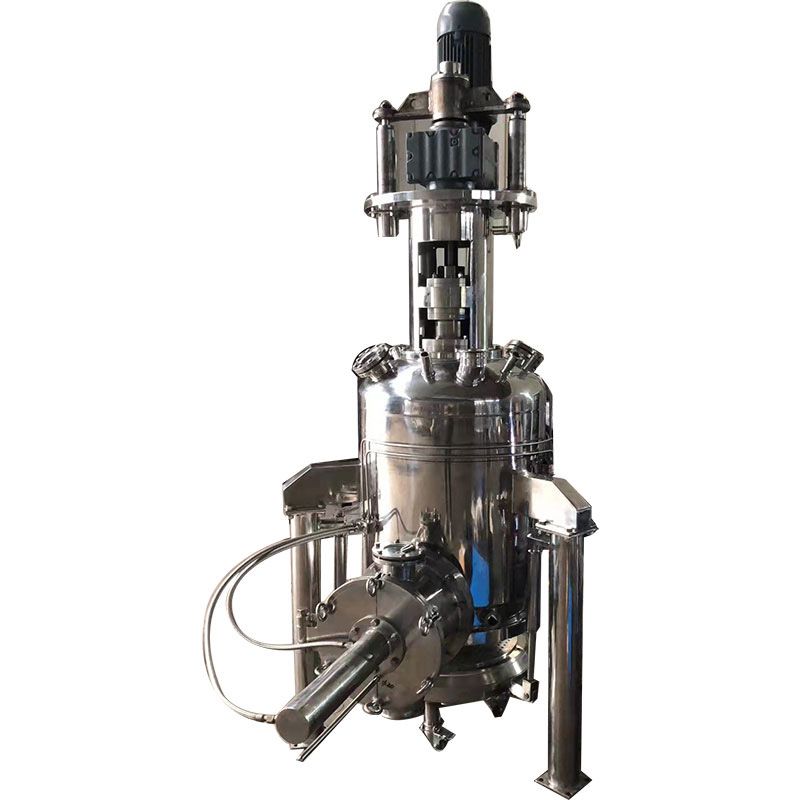

Filtration Machine with Cake Washing
Filtration Machine with Cake Washing

Filtration Machine with Cake Washing

This filtration machine from Weiying is a solid-liquid separation equipment with functions of filtration, cake washing and discharge. It is widely used in chemical, pharmaceutical and food industries.

Request a Quote
Features
  • The body of this 2-in-1 filtration machine is designed and manufactured on the basis of pressure vessel;
  • The entire process is implemented in a hermetic closed vessel;
  • The vacuum in the bottom section of the filter is applied to conduct filtration process, and the positive pressure (below 0.1MPa) can be added into the filter vessel to improve filtration efficiency;
  • After filtering, S-shaped blade is used for processing high-density dry filter cake thereby loosening the filter cake;
  • When it comes to cake washing, S-shaped blade is used as agitator to thoroughly mix the cake with clean washing liquid;
  • Since the structure of bottom plate and vessel is non-detachable, the supporting mesh is placed on the bottom plate to allow the liquid to flow, as well as facilitate the installation of filter cloth;
  • The 2-in-1 filtration machine allows the use of filter cloth, nonwoven fabric or sintered mesh as filter media;
  • Automatic discharge is carried out by means of S-shaped blade to push the material from the side discharge port;
  • The mixing in the forward and reverse directions is driven by the motor reducer, which actuates the rotation of main shaft and controls the hydraulic valve to adjust the speed of vertical movement;
Technical Data
Model Vessel volume (m³) Filter area (㎡) Agitator stroke (mm) Motor power (kW)
1000 1.2 0.8 300 5.5
1200 1.5 1 300 5.5
1400 2.2 1.5 400 7.5
1600 3 2 400 7.5
1800 3.5 2.5 400 11
2000 4 3 400 11
2400 6 4.5 450 15
2800 9.5 6 450 18.5
3000 10.2 7 500 22
3200 12 8 550 30
3600 18 10 550 45
Related Products
  • PE/PA Microporous Filter
  • Candle Filter
  • Automatic Plate Type Hermetic Filter
  • Filter Dryer (3-in-1)
  • Filtration Machine with Cake Washing
  • Multi-Bag Filter
  • Vertical Pressure Leaf Filter
  • Pipeline Filter
  • Custom Industrial Filter
Get in Touch

If you have questions about our products or want to request a quotation, please feel free to contact us at any time.

Products
  • Industrial Centrifuges
    1. Automatic Bottom Discharge Vertical Peeler Centrifuge
    2. Automatic Top Suspended Peeler Centrifuge
    3. Top Discharge Bag Lifting Centrifuge
    4. Horizontal Filtering Centrifuge
    5. Decanter Centrifuge
    6. Fully Enclosed Top Discharge Centrifuge
  • Filtration Equipment
    1. PE/PA Microporous Filter
    2. Candle Filter
    3. Automatic Plate Type Hermetic Filter
    4. Filter Dryer (3-in-1)
    5. Filtration Machine with Cake Washing
    6. Multi-Bag Filter
    7. Vertical Pressure Leaf Filter
    8. Pipeline Filter
    9. Custom Industrial Filter
  • Drying Equipment
    1. High Speed Centrifugal Spray Dryer
    2. Vibrating Fluidized Bed Dryer
    3. Single-Layer / Multi-Layer Belt Dryer
    4. Rotary Flash Dryer
    5. Air Stream Dryer
    6. Fluid Bed Dryer
    7. High Efficiency Fluid Bed Dryer
    8. Horizontal Vacuum Paddle Dryer
    9. Conical Screw Vacuum Dryer
    10. Double Cone Vacuum Dryer
    11. Continuous Plate Dryer
    12. Paddle Dryer
    13. Rotary Drum Dryer
    14. Contact Drum Dryer
    15. Vacuum Freeze Dryer
    16. Hot Air Circulation Oven
    17. Tunnel Oven
  • Granulation Equipment
    1. Fluidized Bed Granulator
    2. High Speed Mixer / Granulator
    3. Solid Dosage Preparation Granulator
    4. Fluid Bed Granulating Coating Machine
    5. Spray Dryer Granulator
    6. Rotor Fluid-Bed Granulator / Coater
    7. Turbojet Fluid Bed Granulator Coater
    8. Rotary Extrusion Granulator
    9. Twin Screw Extruder
    10. Oscillating Granulator
    11. Dry Granulator
    12. Centrifugal Granulator / Coater
    13. High Efficiency Film Coating Machine
  • Auxiliary Equipment
    1. Multifunctional Extracting Tank
    2. Integrated Extraction System
    3. Alcohol Rectification Column
    4. Stainless Steel Liquid Dosing Tank
    5. Stainless Steel Fermentation Tank
    6. Alcohol Deposition Tank
    7. Stainless Steel Reaction Vessel / Crystallization Tank
    8. CIP Cleaning System
    9. Stainless Steel Single-Layer Storage Tank
    10. Stainless Steel Jacketed Tank
    11. Tubular Heat Exchanger
Explore More Products

Click on the categories to filter our product range

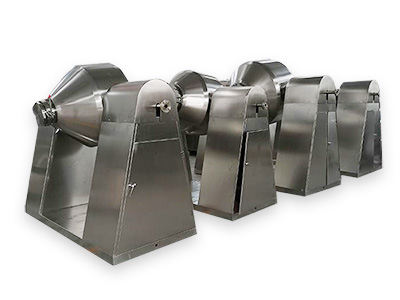

  • Double Cone Vacuum Dryer

    Double Cone Vacuum Dryer

    As we all know, drying is an operation to remove moisture from wet materials through evaporation by heat. And drying processes and dryer designs depend on the nature of the materials to be handled.

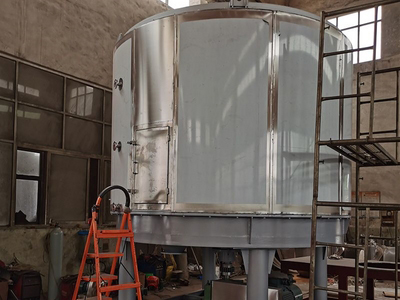

  • Continuous Plate Dryer

    Continuous Plate Dryer

    Weiying PLG series continuous plate dryer is mainly used for continuous drying of free-flowing bulk materials. It has been proven useful in multiple applications and is available in atmospheric, gas-tight or vacuum configurations.

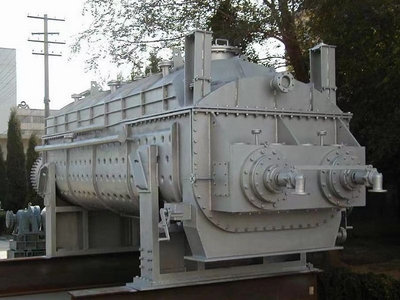

  • Paddle Dryer
