Decanter Centrifuge
Decanter Centrifuge
Request a Quote

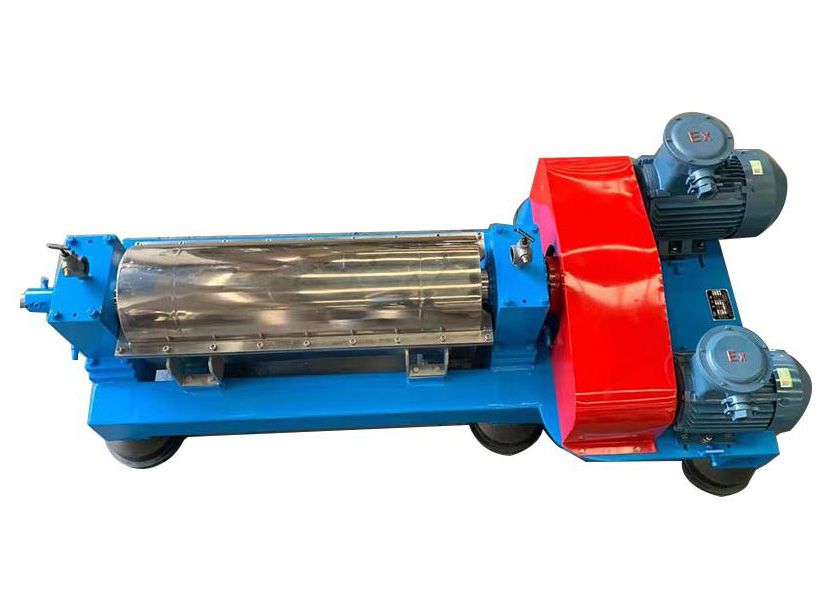

Decanter Centrifuge

Series LW

Weiying LW series decanter centrifuge is a horizontal sedimenting centrifuge that utilizes high centrifugal forces to separate the solid particles (sediment) from the suspension. All processes including feeding, separation and solids discharge are accomplished at a high-speed continuous operation. This decanter centrifuge is typically suitable for the treating suspensions that contain particle size ranging from 0.005 to 2mm, with solid contents of 2-40%, making it applicable to various processes such as solid-liquid separation, classification and clarification. Weiying decanter centrifuges are also suited to handle separations with wide-ranging variations of particle size and solid content.

Technical Data
Model LW220 LW350 LW400 LW450 Lw530 LW620
Bowl diameter (mm) 220 350 400 450 530 620
Max. rotating speed (rpm) 4800 4000 3400 2800 2500 2300
Bowl length (mm) 550-650 580-1050 1200-1750 1350-1940 1590-2270 1950-2800
Length to diameter ratio 2.5-3 1.6-3 3-4.4 3-4.4 3-4.4 3-4.4
Centrifugal force (G) 2800 3100 2580 2000 1930 1830
Handling capacity 1-3 4-6 6-12 8-20 10-30 18-45
Motor power (kW) 11 15 18.5 22-30 30-37 37-55
Weight (kg) 1000 1500 2600 3000 3000 5500
Differential speed (adjustable) 10-60 (r/min) 10-60 (r/min) 10-60 (r/min) 10-60 (r/min) 10-60 (r/min) 10-60 (r/min)
Dimension (L×W×H) (mm) 1565×1000×600 2370×1310×855 2344×1857×922 (2750-3300)×1500×922 (3230-3730)×1600×1100 (3950-4500)×1750×1350
