Multifunctional Extracting Tank

Stainless steel extracting tanks, or extraction vessels, are used in extraction processes to obtain desired substances from various materials. They are frequently found in industries of herbs extraction, pharmaceuticals, food processing, etc.
Weiying supplies a wide range of multifunctional extracting tanks that are of different types, including cylindrical extraction tank, conical bottom extraction tank, mushroom type extraction tank and combined cone extraction tank.

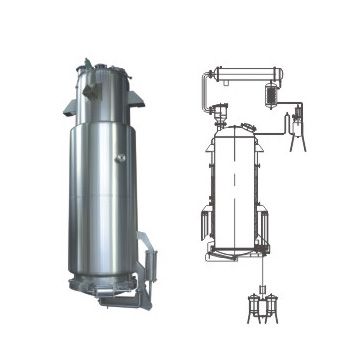

  • Cylindrical Extraction Tank, TQZ (DTH)Cylindrical Extraction Tank, TQZ (DTH)

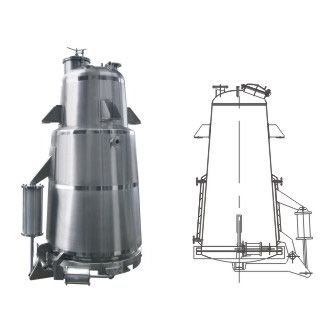

  • Conical Bottom Extraction Tank, TQA (DTH)Conical Bottom Extraction Tank, TQA (DTH)

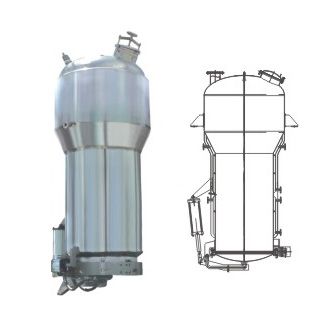

  • Mushroom Type Extraction Tank, TQM (DTH)Mushroom Type Extraction Tank, TQM (DTH)

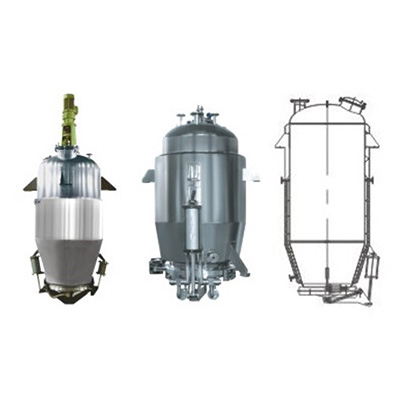

  • Combined Cone Extraction Tank, TQB (DTH)Combined Cone Extraction Tank, TQB (DTH)
Technical Data
Model TQ-0.5 TQ-1 TQ-2 TQ-3 TQ-4 TQ-6 TQ-8 TQ-10
Volume (L) 600 1200 2300 3200 4300 6300 8500 11000
Design pressure of tank (MPa) 0.09
Design pressure of jacket (MPa) 0.3
Diameter of feeding port (mm) 400 400 400 400 500 500 500 500
Heating area (m²) 2.4 3 4.7 6.8 8 10 12 12
Condensation area (m²) 3 4 5.4 8 10 10 15 18
Cooling area (m²) 1 1 1 1 1 2.2 2.2 3
Filtration area (m²) 0.25 25 0.25 0.25 0.25 0.3 0.3 0.3
Deslagging diameter (mm) 600 800 1000 1200 1200 1400 1500 1600
Gas consumption (kg/h) 285 285 346 570 660 718 903 1140
Water consumption (T/h) 2.1 2.1 2.5 4.2 4.5 5.5 6.7 6.7
Heating and steam outlet (mm) 32 32 32 40 40 50 50 50
Exhaust outlet (mm) 100 100 100 125 125 150 150 150
Cooling water outlet (mm) 40 40 40 50 50 50 65 70
Engine power (kW) 2.2 2.2 3 4 5.5 5.5 7.5 7.5
Agitator speed (r/min) 36 36 36 36 36 36 36 36
