Stainless Steel Jacketed Tank
Stainless Steel Jacketed Tank
Stainless Steel Jacketed Tank Stainless Steel Jacketed Tank

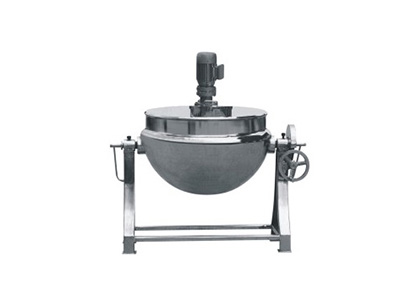

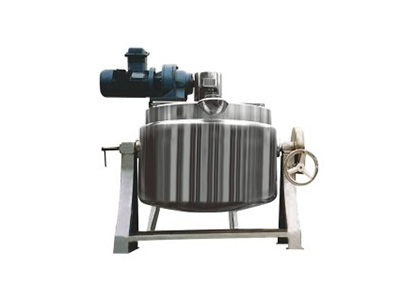

Stainless Steel Jacketed Tank

Weiying stainless steel jacketed tank is commonly used in pharmaceutical, food, chemical, light industry and other industries for decoction and concentration of liquid. With wide range of applications, all parts in contact with materials are made of SUS304 stainless steel, which is durable and complied with Good Manufacturing Practices (GMP) requirements. At the same time, stirrers can be added so as to tailor to clients' demands.

Request a Quote
Technical Data
Model QJ5O QJ100 QJ150 QJ200 QJ300 QJ400 QJ500
Tank capacity (L) 50 100 150 200 300 400 500
Jacket working pressure (MPa) < 0.2
Evaporation (kg/h) 30 40 50 65 75 100 150
Heating area (m²) 0.4 0.45 0.76 1.0 1.15 1.44 1.90
Energy consumption (kg/h) 33 44 55 72 90 110 165
Weight (kg) 170 190 210 230 320 360 485
Dimension (L×W×H) (mm)
Width (mm) 720 800 1350 1400 1450 1500 1600
Height (mm) 600 650 660 700 800 850 900
Length (mm) 830 950 1000 1100 1110 1140 1150
