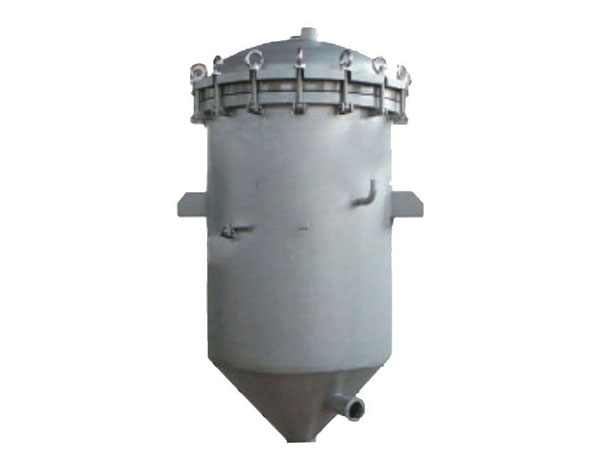

Candle Filter

Series XKB

Weiying XKB series candle filter is primarily used for clarifying liquids with high content of solids. It comprises a group of columnar filter elements enclosed inside a pressure vessel which requires small floor space, helping customers save space at their manufacturing plant.

Features
  • The candle filter is well suited for the precise filtration of liquids that contain high content of solids, with dry cake discharge;
  • Able to remove particles greater than 0.3μm at one time;
  • The filter cake attached on the filter elements (candle surface) is separated and discharged by back blowing. Then, the next filtration cycle begins;
  • PE/PA filter elements are characterized by excellent chemical properties, providing long service life which translates to lower cost;
  • The filtration process is carried out in an airtight enclosure, ensuring safe production while preventing any odors from escaping;
  • Specially designed sealing ring enables the pneumatically operated cake discharge opening to be highly secured, allowing the acceleration of dry cake discharge;
  • The candle filter is easy to clean and maintenance;
  • Additional insulation jacket or lining on the inner wall can be provided to adapt to the actual application needs;
Technical Data
Model XKB-1 XKB-2 XKB-3 XKB-5 XKB-10 XKB-20 XKB-30 XKB-40 XKB-60 XKB-100 XKB-120 XKB-150 XKB-200 XKB-300
Filter area (㎡) 1 2 3 5 10 20 30 40 60 100 120 150 200 300
Handling capacity (T/h) Depending on specific experimental data
Working pressure (MPa) ≤0.2
Working temperature (°C) ≤110
Filter body diameter (mm) 300 300 300 400
300
500 800 1000
900
1000 1200 1600
1400
1800
1600
2000
1800
2200
2000
2400
Filter body height (mm) 1530 1730 1828 2567 2880 3530 3493 4107 4030 4654 4526 4500 5290 5432
Inlet/outlet diameter (mm) DN40/
DN40
DN40/
DN40
DN40/
DN40
DN40/
DN50
DN50/
DN50
DN50/
DN50
DN65/
DN65
DN65/
DN65
DN65/
DN65
DN100/
DN120
DN100/
DN120
DN150/
DN150
DN150/
DN150
DN150/
DN150
Cake discharge opening (mm) 200 200 300
200
300
200
400
300
200
400
300
200
550
400
300
200
550
400
300
200
550
400
300
200
550
400
300
200
550
400
300
200
550
400
300
200
550
400
300
550
400
Filter tube spacing (mm) 43 43 43 50 50 67 55 50 50 60 60 65 60 55
Filter volume (m³) 0.035 0.05 0.07 0.2 0.62 0.8 1.2 2.1 2.3 5.5 5.3 7.8 9.6 11.6
Max. cake volume (m³) 0.005 0.01 0.015 0.025 0.05 0.1 0.15 0.2 0.3 0.5 0.6 0.75 1 1.5
Weight (kg) 240 250 260 440 810 1260 1480 2700 2700 4360 4660 4950 7050 8890
Related Products
  • PE/PA Microporous Filter
  • Candle Filter
  • Automatic Plate Type Hermetic Filter
  • Filter Dryer (3-in-1)
  • Filtration Machine with Cake Washing
  • Multi-Bag Filter
  • Vertical Pressure Leaf Filter
  • Pipeline Filter
  • Custom Industrial Filter
Get in Touch

If you have questions about our products or want to request a quotation, please feel free to contact us at any time.

Products
  • Industrial Centrifuges
    1. Automatic Bottom Discharge Vertical Peeler Centrifuge
    2. Automatic Top Suspended Peeler Centrifuge
    3. Top Discharge Bag Lifting Centrifuge
    4. Horizontal Filtering Centrifuge
    5. Decanter Centrifuge
    6. Fully Enclosed Top Discharge Centrifuge
  • Filtration Equipment
    1. PE/PA Microporous Filter
    2. Candle Filter
    3. Automatic Plate Type Hermetic Filter
    4. Filter Dryer (3-in-1)
    5. Filtration Machine with Cake Washing
    6. Multi-Bag Filter
    7. Vertical Pressure Leaf Filter
    8. Pipeline Filter
    9. Custom Industrial Filter
  • Drying Equipment
    1. High Speed Centrifugal Spray Dryer
    2. Vibrating Fluidized Bed Dryer
    3. Single-Layer / Multi-Layer Belt Dryer
    4. Rotary Flash Dryer
    5. Air Stream Dryer
    6. Fluid Bed Dryer
    7. High Efficiency Fluid Bed Dryer
    8. Horizontal Vacuum Paddle Dryer
    9. Conical Screw Vacuum Dryer
    10. Double Cone Vacuum Dryer
    11. Continuous Plate Dryer
    12. Paddle Dryer
    13. Rotary Drum Dryer
    14. Contact Drum Dryer
    15. Vacuum Freeze Dryer
    16. Hot Air Circulation Oven
    17. Tunnel Oven
  • Granulation Equipment
    1. Fluidized Bed Granulator
    2. High Speed Mixer / Granulator
    3. Solid Dosage Preparation Granulator
    4. Fluid Bed Granulating Coating Machine
    5. Spray Dryer Granulator
    6. Rotor Fluid-Bed Granulator / Coater
    7. Turbojet Fluid Bed Granulator Coater
    8. Rotary Extrusion Granulator
    9. Twin Screw Extruder
    10. Oscillating Granulator
    11. Dry Granulator
    12. Centrifugal Granulator / Coater
    13. High Efficiency Film Coating Machine
  • Auxiliary Equipment
    1. Multifunctional Extracting Tank
    2. Integrated Extraction System
    3. Alcohol Rectification Column
    4. Stainless Steel Liquid Dosing Tank
    5. Stainless Steel Fermentation Tank
    6. Alcohol Deposition Tank
    7. Stainless Steel Reaction Vessel / Crystallization Tank
    8. CIP Cleaning System
    9. Stainless Steel Single-Layer Storage Tank
    10. Stainless Steel Jacketed Tank
    11. Tubular Heat Exchanger
Explore More Products

Click on the categories to filter our product range

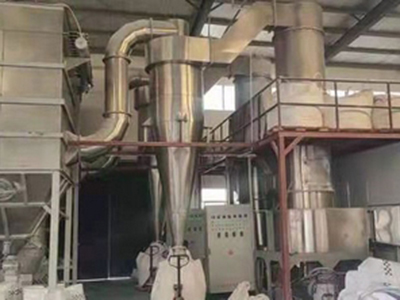

  • Rotary Flash Dryer

    Rotary Flash Dryer

    As a new type of highly efficient drying equipment in our company, Weiying XSG series rotary flash dryer has a wide range of applications due to its large production capacity.

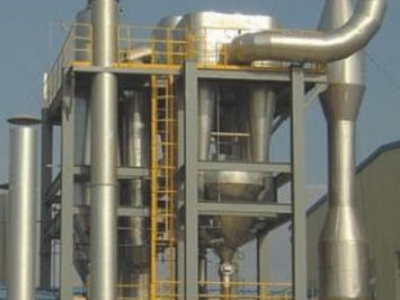

  • Air Stream Dryer

    Air Stream Dryer

    Weiying Q/QG/JG series air stream dryer is primarily suitable for wet materials containing relatively much moisture and high viscous pastes.

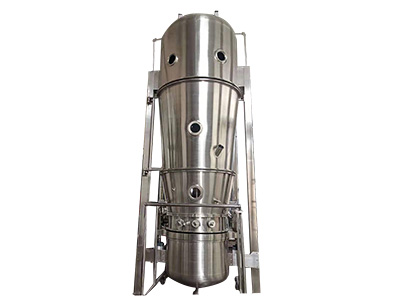

  • Fluid Bed Granulating Coating Machine

    Fluid Bed Granulating Coating Machine

    Weiying FLP series fluid bed granulating coating machine is a multipurpose machine that integrates spray drying, granulation, centrifugal pellets making and fluidized coating and drying.

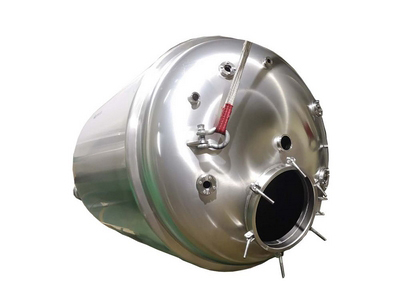

  • Alcohol Deposition Tank
