Automatic Plate Type Hermetic Filter
Automatic Plate Type Hermetic Filter
Request a Quote

Automatic Plate Type Hermetic Filter

Series XKG

Weiying XKG series automatic plate type hermetic filter is a high-efficiency clarifying and filtration equipment, it is frequently used in chemical, petroleum, food and pharmaceutical industries. The automatic plate type hermetic filter offers unparalleled benefits due to its distinctive structure.

Features
  • Completely hermetic filtration process, no leakage and no pollution;
  • Clarification can be done through one filtration cycle, the filtering precision can reach PPM;
  • Filtrate will be totally recovered, without residual filtrate;
  • No need of filter paper and filter cloth, ensuring low filtration cost;
  • The filtering residues can be automatically discharged by gently pressing the control button;
  • The filtrate and filtering residues are recovered together;
  • The entire filtration process is automatically accomplished by combining with a computer;
  • No temperature limit for filtering, less labor force and easy to operate;
  • Low production cost, simple to maintain;
Technical Data
Model Filter area (㎡) Handling capacity (T/h) Working pressure MPa Filter volume (L) Weight (kg) Dimension (L×W×H) (mm)
Food Petroleum Grease Rated pressure Max. pressure
XKG-5 5 2-3 2-5 1-1.2 0.1-0.4 0.5 600 2100 1500 x 1300x1960
XKG-7 7 4-6 5-7 1.4-2 780 2S00 1600x1400 x 2000
XKG-10 10 6-8 7-9 2-3 1200 2800 1700x 1800 x 2320
XKG-15 15 9-12 11-13 3-5 2000 3800 2050 x 2100x1900
XKG-20 20 12-16 15-17 5-7 2200 4200 2050 x 2100 x 2200
XKG-25 25 15-20 19-21 7-9 2500 4500 2050x2100x2600
XKG-30 30 18-24 23-25 9-11 4700 5800 2600 x 2500 x 3600
XKG-35 35 21-27 27-29 11-13 4900 6500 2600x2500x3800
Related Products
  • PE/PA Microporous Filter
  • Candle Filter
  • Automatic Plate Type Hermetic Filter
  • Filter Dryer (3-in-1)
  • Filtration Machine with Cake Washing
  • Multi-Bag Filter
  • Vertical Pressure Leaf Filter
  • Pipeline Filter
  • Custom Industrial Filter
Get in Touch

If you have questions about our products or want to request a quotation, please feel free to contact us at any time.

Products
  • Industrial Centrifuges
    1. Automatic Bottom Discharge Vertical Peeler Centrifuge
    2. Automatic Top Suspended Peeler Centrifuge
    3. Top Discharge Bag Lifting Centrifuge
    4. Horizontal Filtering Centrifuge
    5. Decanter Centrifuge
    6. Fully Enclosed Top Discharge Centrifuge
  • Filtration Equipment
    1. PE/PA Microporous Filter
    2. Candle Filter
    3. Automatic Plate Type Hermetic Filter
    4. Filter Dryer (3-in-1)
    5. Filtration Machine with Cake Washing
    6. Multi-Bag Filter
    7. Vertical Pressure Leaf Filter
    8. Pipeline Filter
    9. Custom Industrial Filter
  • Drying Equipment
    1. High Speed Centrifugal Spray Dryer
    2. Vibrating Fluidized Bed Dryer
    3. Single-Layer / Multi-Layer Belt Dryer
    4. Rotary Flash Dryer
    5. Air Stream Dryer
    6. Fluid Bed Dryer
    7. High Efficiency Fluid Bed Dryer
    8. Horizontal Vacuum Paddle Dryer
    9. Conical Screw Vacuum Dryer
    10. Double Cone Vacuum Dryer
    11. Continuous Plate Dryer
    12. Paddle Dryer
    13. Rotary Drum Dryer
    14. Contact Drum Dryer
    15. Vacuum Freeze Dryer
    16. Hot Air Circulation Oven
    17. Tunnel Oven
  • Granulation Equipment
    1. Fluidized Bed Granulator
    2. High Speed Mixer / Granulator
    3. Solid Dosage Preparation Granulator
    4. Fluid Bed Granulating Coating Machine
    5. Spray Dryer Granulator
    6. Rotor Fluid-Bed Granulator / Coater
    7. Turbojet Fluid Bed Granulator Coater
    8. Rotary Extrusion Granulator
    9. Twin Screw Extruder
    10. Oscillating Granulator
    11. Dry Granulator
    12. Centrifugal Granulator / Coater
    13. High Efficiency Film Coating Machine
  • Auxiliary Equipment
    1. Multifunctional Extracting Tank
    2. Integrated Extraction System
    3. Alcohol Rectification Column
    4. Stainless Steel Liquid Dosing Tank
    5. Stainless Steel Fermentation Tank
    6. Alcohol Deposition Tank
    7. Stainless Steel Reaction Vessel / Crystallization Tank
    8. CIP Cleaning System
    9. Stainless Steel Single-Layer Storage Tank
    10. Stainless Steel Jacketed Tank
    11. Tubular Heat Exchanger
Explore More Products

Click on the categories to filter our product range

  • Fluid Bed Dryer

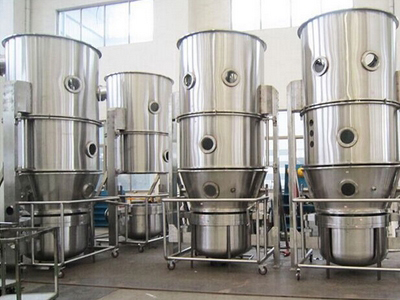

    Fluid Bed Dryer

    Weiying FG series fluid bed dryer is particularly suitable for drying powder or granules, and the operated speed is usually 10 or 20 times than that of common drying ovens.

  • High Efficiency Fluid Bed Dryer

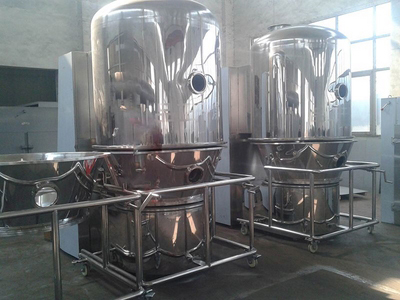

    High Efficiency Fluid Bed Dryer

    Weiying GFG series high efficiency fluid bed dryer is a round structured equipment mainly used for drying of wet granules and powder materials in the pharmaceutical, food, feed, chemical industries, etc.

  • Rotor Fluid-Bed Granulator / Coater

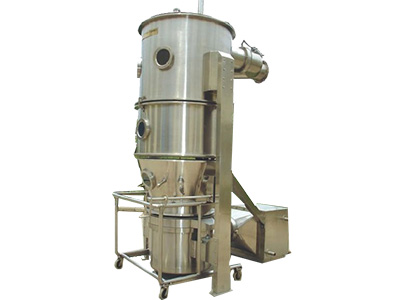

    Rotor Fluid-Bed Granulator / Coater

    Weiying XLB series rotor fluid-bed granulator is a highly qualified granulator designed for mixing, pelletizing, granulating and drying particles in various fields or industries ...

  • Twin Screw Extruder

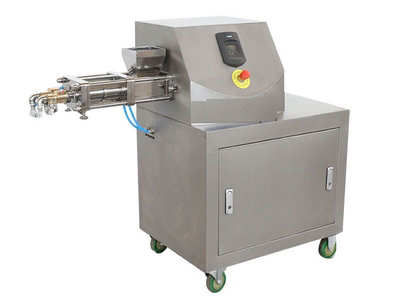

    Twin Screw Extruder
